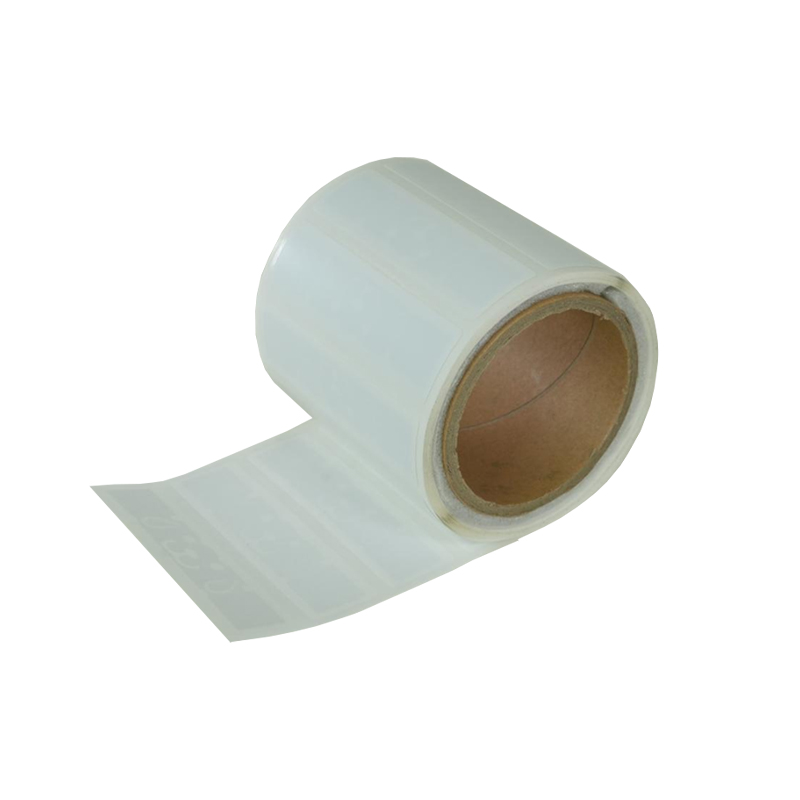

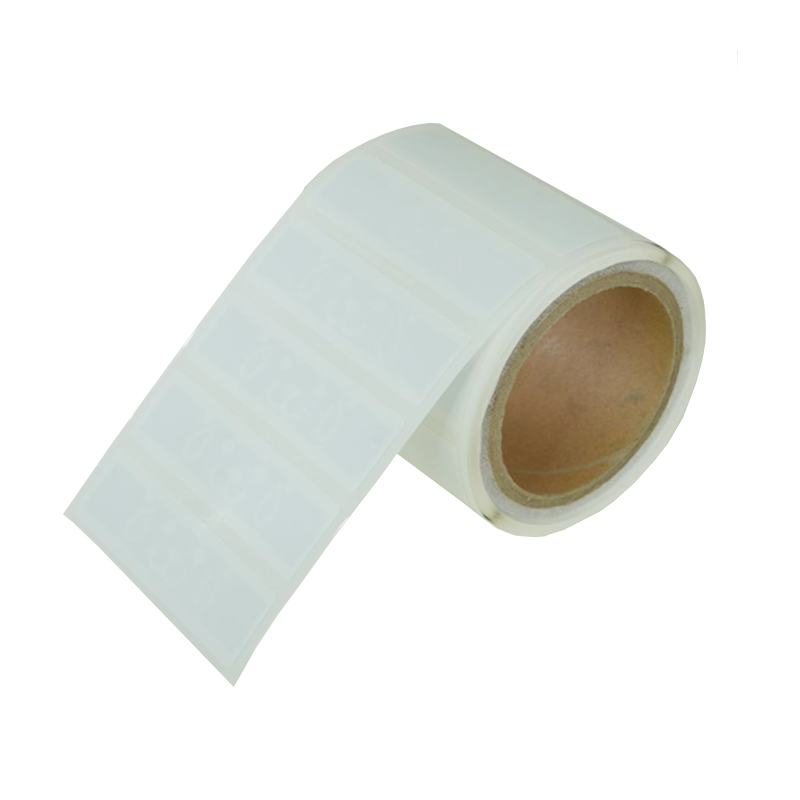

UHF RFID Windshield Label Mi9319-UCODE® 8/UCODE® 9

Description

Product Description:

The RFID windshield label serves for the automatic, contactless identification of vehicles (Automatic Vehicle Identification, AVI) The label is attached to the inside of the windshield. The develompent of the RFID windshield label has been focused on a very high read range due to the special antenna behind the glass and a passive function without a battery. The privacy protection is realised via an untraceale command.

Product Parameters:

Item	Description
Product	UHF RFID Windshield Label Mi9319-UCODE® 8/UCODE® 9
Chip Type	UCODE® 8		NUCODE® 9
EPC Memory	128Bits		96Bits
User Memory	0Bits		0Bits
TID Memory	48Bits		96Bits
Frequency	860～960MHz
Operating Mode	Passive
Protocol	ISO/IEC 18000-6C EPC Class1 Gen2
ESD Voltage Immunity	2KV Max. 2000V
IC Life	100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity	[-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity	From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
ANTENNA SIZE(mm)	93*19mm
Available Dimensions(mm)	98*40mm	96*23mm	98*40mm
	or Customized
Application	Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking
Disclaimer	Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
