Product Description:

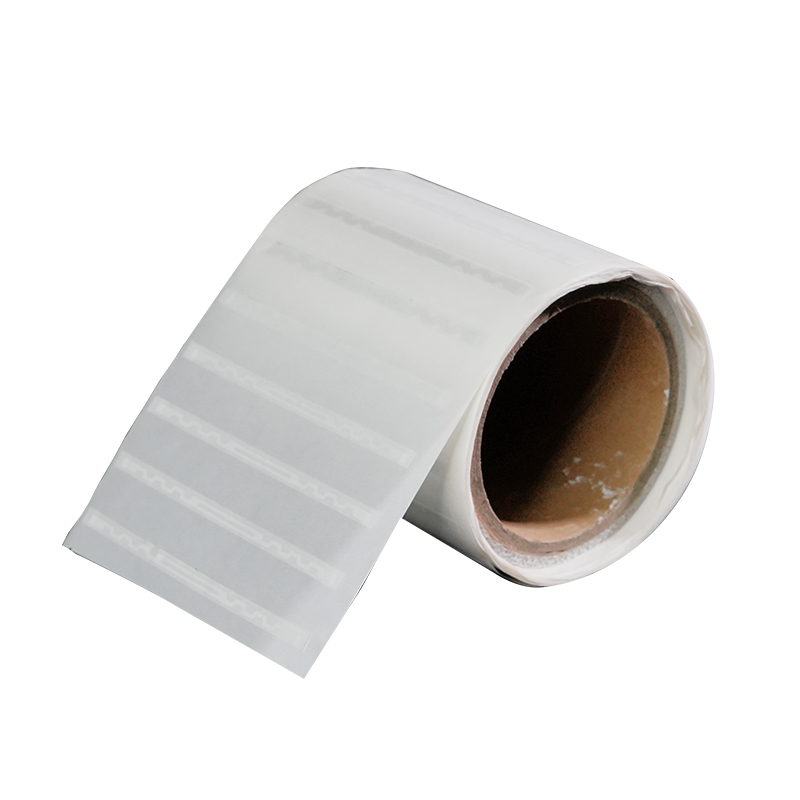

RFID 100003-UCODE® 9, can be used as file management label, logistics tracking label, clothing management label.
It can optimize self-management, fast and rapid inventory, easy to trace.
Ultrahigh frequency book label reading distance, can be multi-label recognition, high sensitivity, off-the-shelf supply.
We are 20 years of experience in RFID book label manufacturer that the label has quality assurance.
Product Parameters:
| Item | Description | |
| Product | UHF RFID Long Read Range Library Management label Mi100003-UCODE® 9 | |
| Chip Type | UCODE® 9 | |
| EPC Memory | 96Bits | |
| User Memory | 0Bits | |
| TID Memory | 96Bits | |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 100*3mm | |
| Available Dimensions(mm) | 105*5.5mm | |
| 110*5.5mm | ||
| or Customized | ||
| Application | Library books and archives management | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
