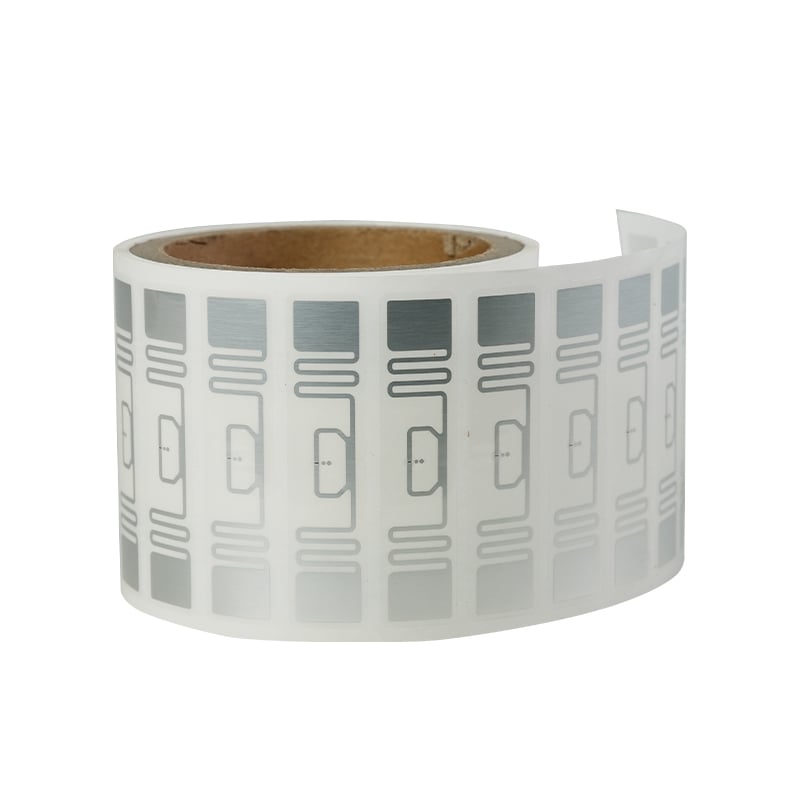

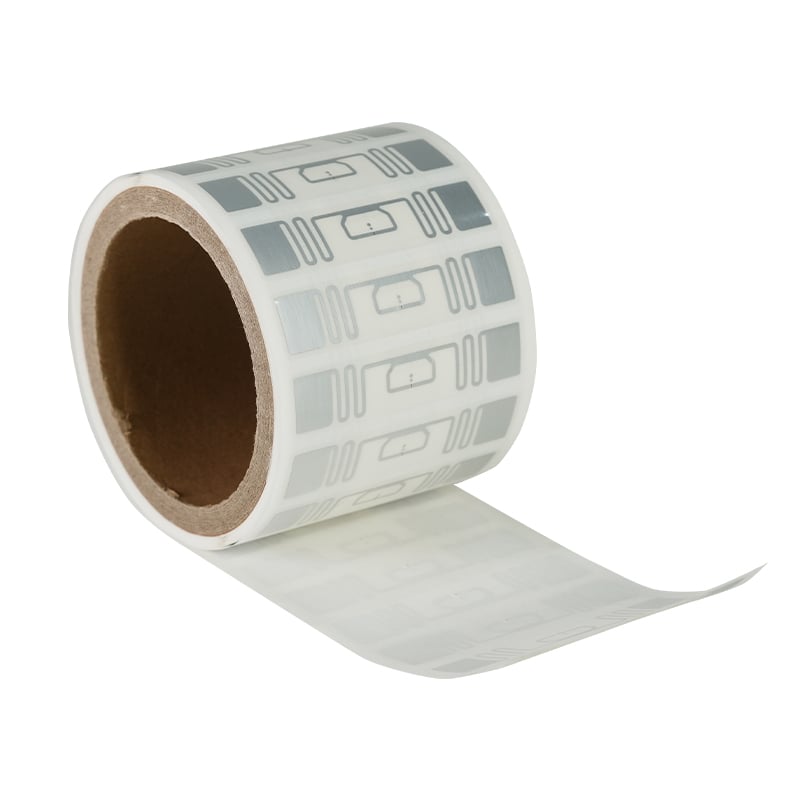

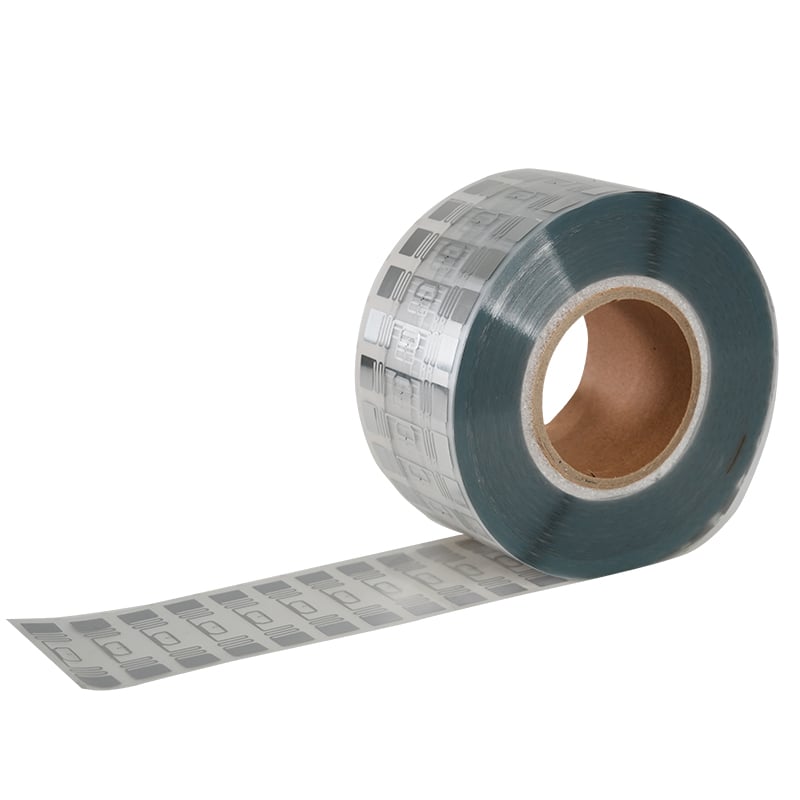

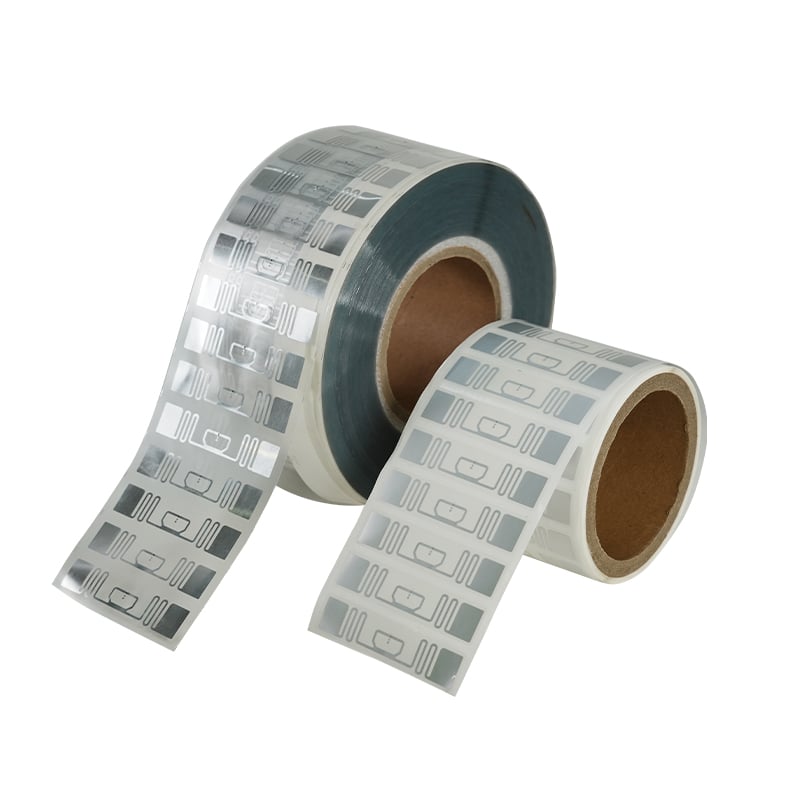

UHF RFID Medical Consumables Dry Inlay E62-Monza R6-P

Description

Product Description:

E62 is a tag for fixed assets and medical consumables management. It supports UHF (ISO 18000-6C) protocol. This dry inlay can be customized to any size according to your needs and flexibly meet specific application requirements. It is an ideal solution for various asset management and medical supply chain needs. With E62, you can simplify operations, enhance visibility and improve the overall efficiency of asset and consumables management systems.

Product Parameters:

Item	Description
Product	UHF RFID Medical Consumables Dry Inlay E62-Monza R6-P
Chip Type	Impinj/Monza R6-P
EPC Memory	128Bits
User Memory	32Bits
TID Memory	48Bits
Frequency	860～960MHz
Operating Mode	Passive
Protocol	ISO 18000-63/Gen2v2
ESD Voltage Immunity	2KV Max. 2000V
IC Life	100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity	[-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity	From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
ANTENNA SIZE(mm)	70*14mm
Available Dimensions(mm)
	or Customized
Application	Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking
Disclaimer	Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
