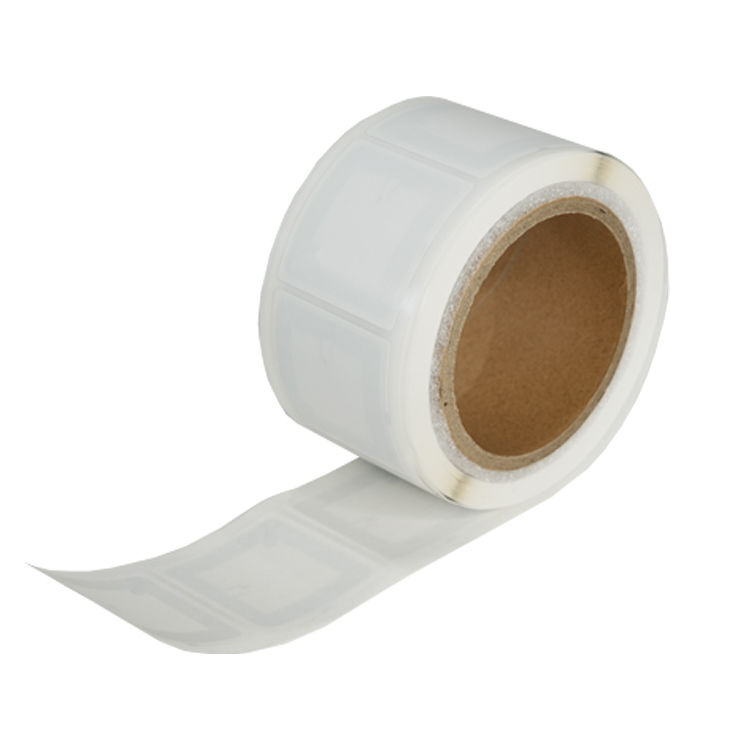

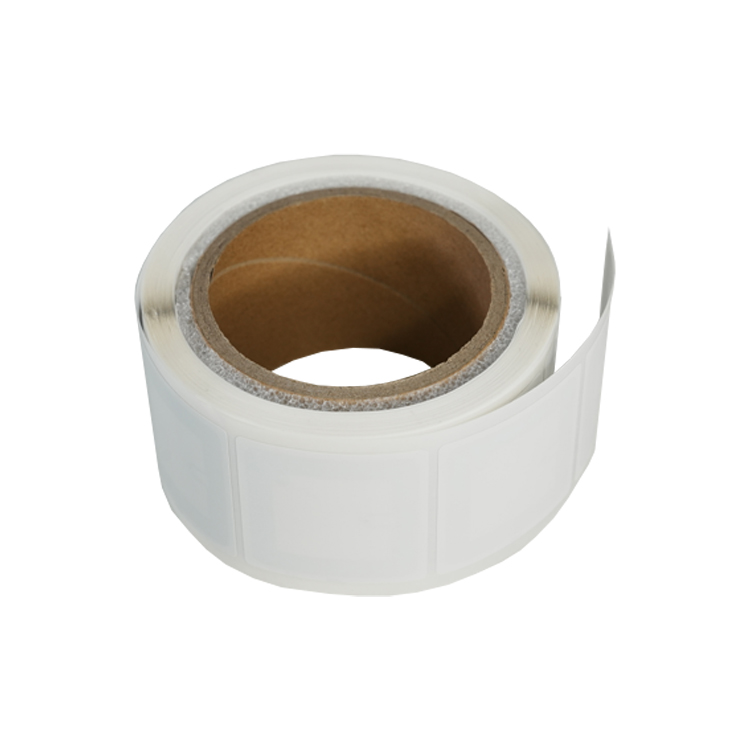

HF RFID Label 7645

Description

Product Description:

The HF RFID Label 7645-NXP/ICODE® SLIX2 is a high-frequency RFID tag designed for advanced tracking and management applications. Featuring the NXP ICODE® SLIX2 chip and compliant with ISO 15693 protocols, this label data integrity, and security. Its adhesive backing allows for easy and secure attachment to various surfaces, making it ideal for asset tracking, inventory management, library systems, and access control. The Label  is engineered for reliability and durability in diverse environments, providing a robust solution to enhance operational efficiency and tracking accuracy.

Product Parameters:

Item	Description
Product	HF RFID Label 7645
Chip Type	ICODE® SLIX2
User Memory	2518 bits
Frequency	13.56MΗz
Operating Mode	Passive
Protocol	ISO 15693
ESD Voltage Immunity	2KV
IC Life	100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity	[-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity	From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
ANTENNA SIZE(mm)	76*45mm
Available Dimensions(mm)	52*83mm
	or Customized
Application	asset tracking, inventory management and access control.
Disclaimer	Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
