Description
Product Description:

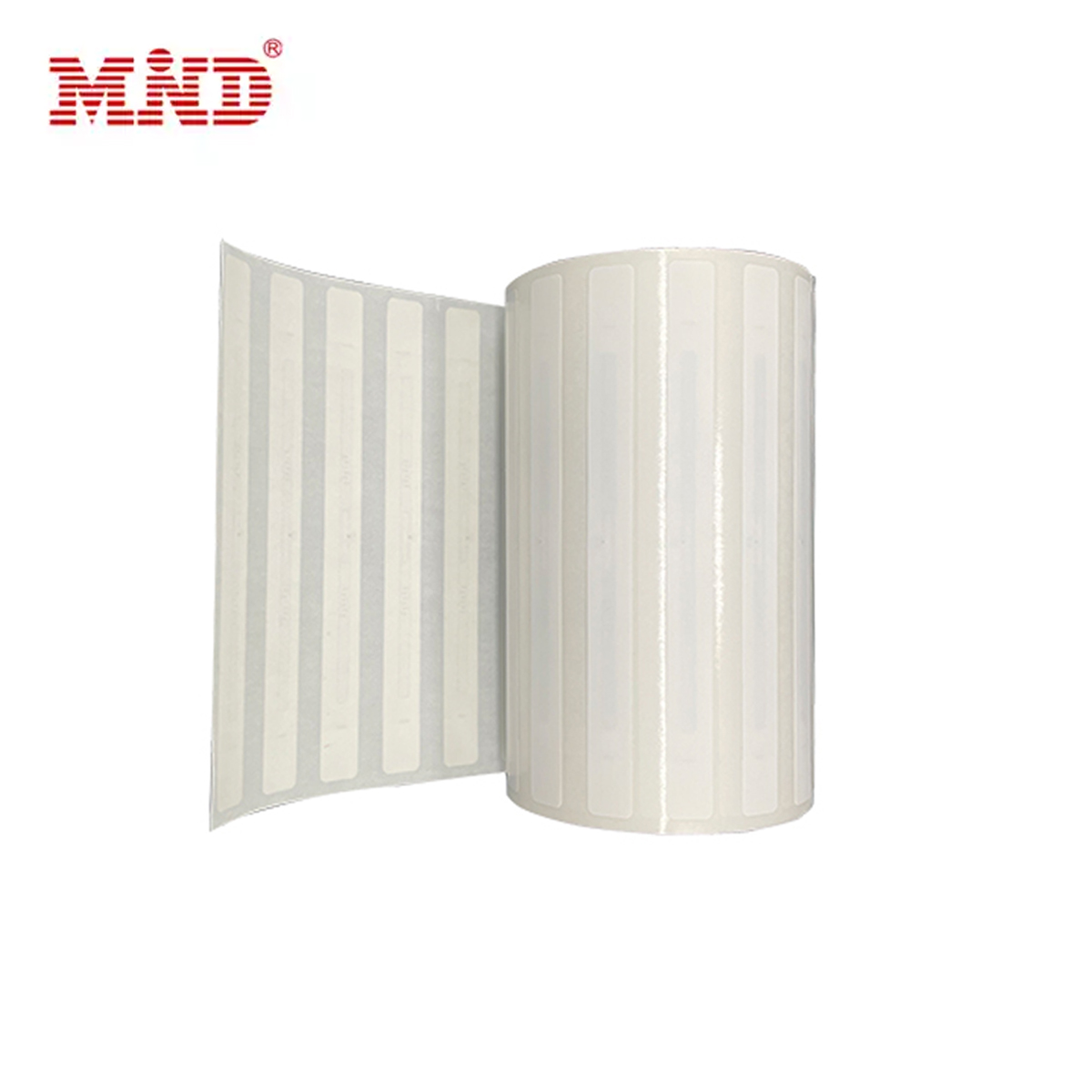

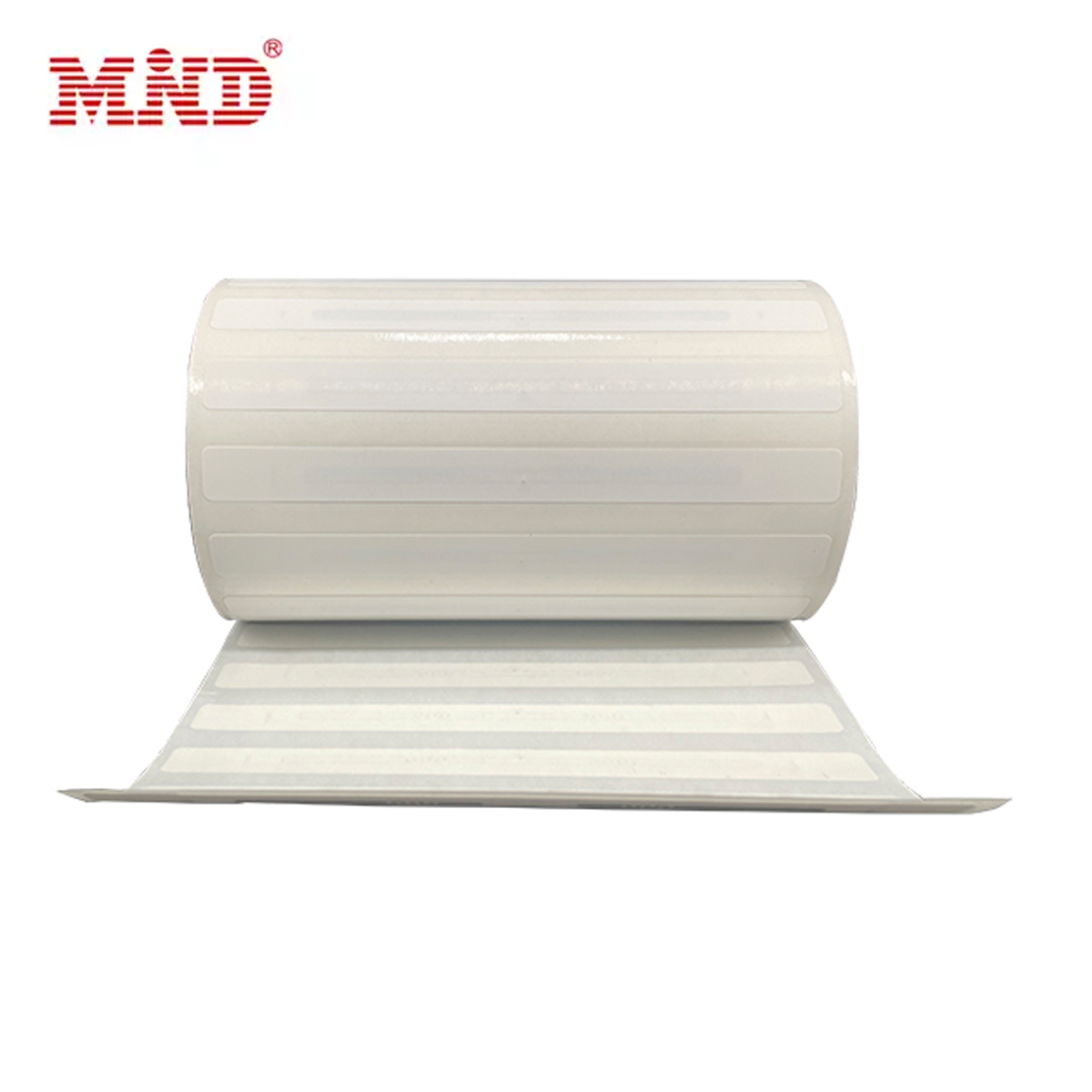

The Mi9503-Monza R6-P is a specialized UHF RFID label designed for efficient library and archive management. Featuring the Monza R6-P chip and compliant with the ISO 18000-6C protocol, this label offers superior read range, reliability, and data accuracy. The tag is optimized for seamless integration into books, documents, and archival materials, enhancing inventory tracking, anti-theft measures, and circulation management. Its robust performance ensures fast and accurate data processing, making it an indispensable tool for modernizing library and archive systems. With the tag, institutions can streamline operations, improve inventory accuracy, and provide better service to patrons and researchers.
Product Parameters:
| Item | Description | |
| Product | UHF RFID Library and archive management Label Mi9503-MonzaR6-P | |
| Chip Type | Impinj/Monza R6-P | |
| EPC Memory | 128Bits | |
| User Memory | 32Bits | |
| TID Memory | 48Bits | |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO 18000-63/Gen2v2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 95*3mm | |
| Available Dimensions(mm) | 98*6mm | |
| 98*15mm | ||
| or Customized | ||
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
