Description
Product Description:

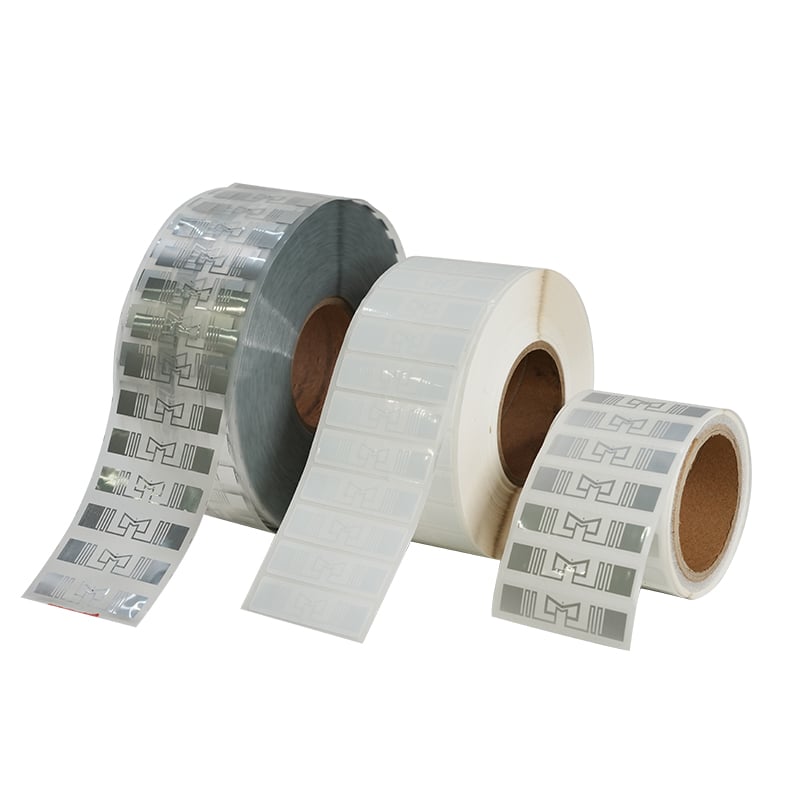

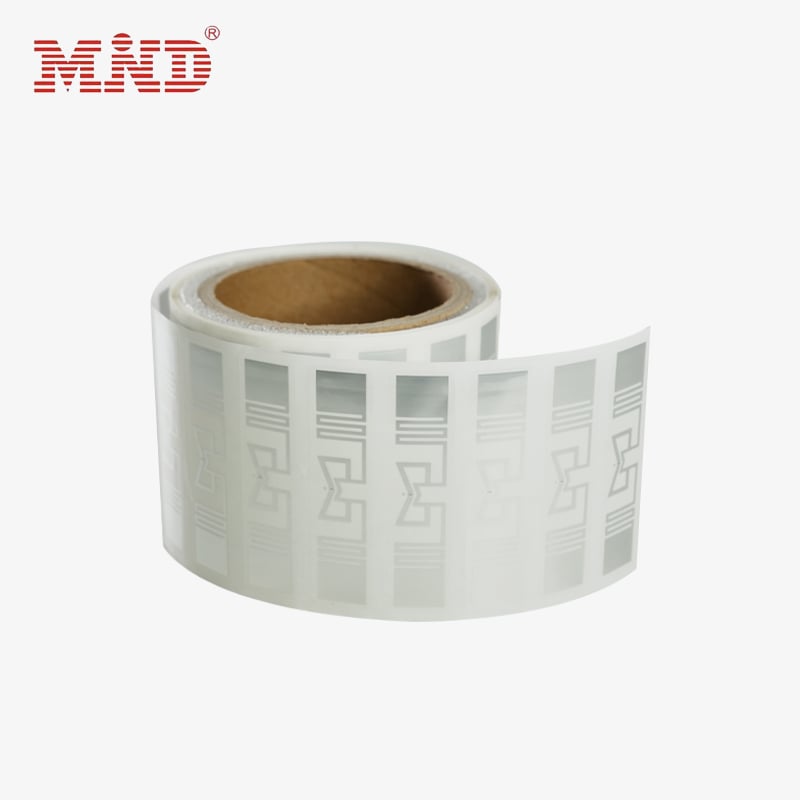

7014 RFID White Label is a versatile inlay powered by the Impinj/M730
IC allowing for smaller inlay designs due to its higher chip performance.
This inlay enables fast and high volume reading, making it ideal for enterprise, retail, and apparel applications. This inlay can be readily applied to a variety of surfaces including wood, plastic, cardboard, rubber, cotton tissue, and denim.Typical applications for this product include but are not limited to apparel, item-level retail, asset management, supply chain, inventory, and logistics.
Product Parameters:
| Item | Description |
| Product | UHF RFID Wet Inlay Mi7014-M730 |
| Chip Type | Impinj/M730 |
| EPC Memory | 128Bits |
| User Memory | 0Bits |
| TID Memory | 48Bits |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO 18000-63/Gen2v2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | 70*14mm |
| Available Dimensions(mm) | 73*18mm |
| 73*20mm | |
| or Customized | |
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
