Description
Product Description:
These labels are designed for use with standard RFID readers and are stocked in a variety of inlay types and sizes. They are available in paper and synthetic materials that work on non-metallic surfaces, plastics or corrugate. Typical applications include labeling of cases,Optical disc, pallets, products and healthcare specimens.
Product Parameters:
| Item | Description | |

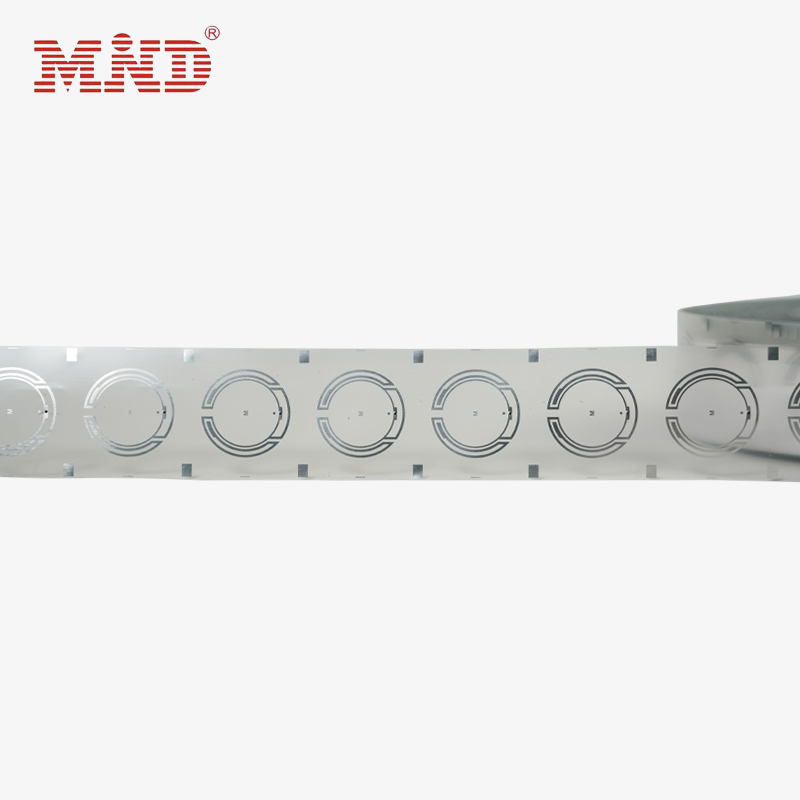

| Product | UHF RFID Optical disc dry Inlay Miφ27_Higgs9 | |
| Chip Type | Alien/Higgs9 | |
| EPC Memory | 96~496Bits | |
| User Memory | Up to 688Bits | |
| TID Memory | 48Bits | |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | φ27mm | |
| Available Dimensions(mm) | φ30mm | |
| or Customized | ||
| Application | Optical disc and other assets tracking | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
