Description
Product Description:
The 9629-Higgs9 is a compact UHF RFID label designed for applications requiring a small form factor without compromising performance. Equipped with the advanced Higgs9 chip and compliant with the ISO 18000-6C protocol, this mini label delivers excellent read range and data accuracy. Its small size allows for discreet placement on a variety of assets, making it ideal for tracking small items, electronics, and tools. The tag ensures efficient inventory management and asset tracking, providing fast data processing and secure information handling. This label is an excellent solution for businesses looking to enhance their tracking capabilities while maintaining a low profile.
Product Parameters:
| Item | Description |

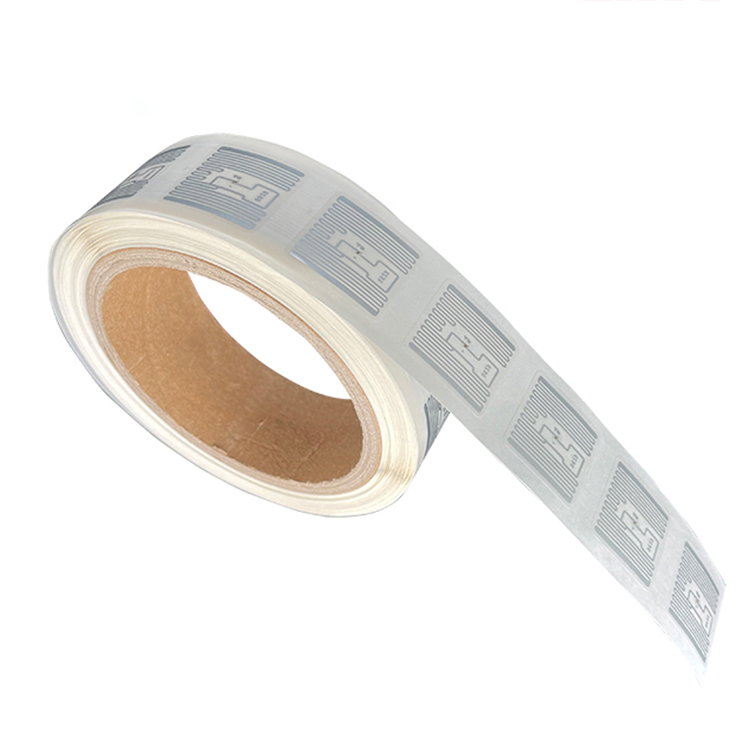

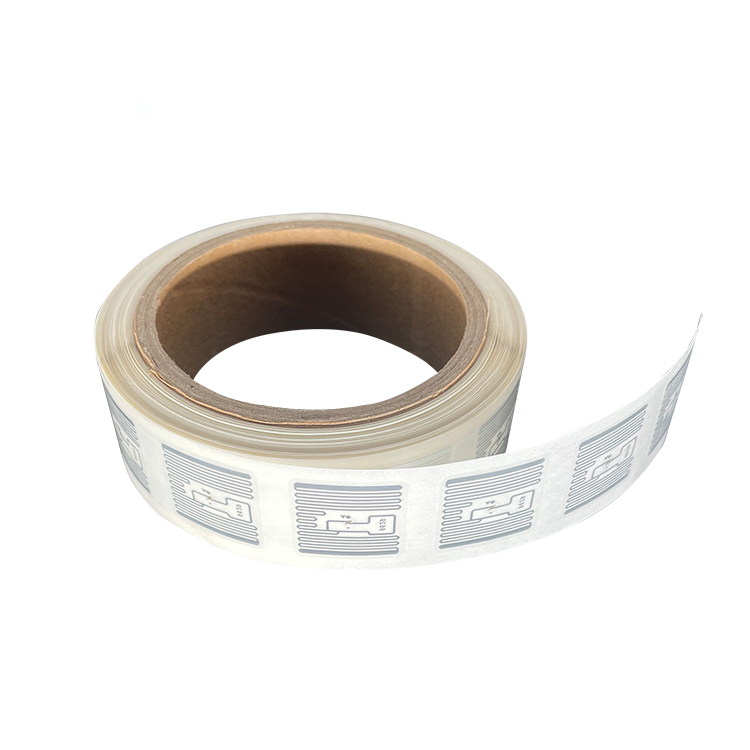

| Product | UHF RFID Mini Small Labe 9629-Higgs9 |
| Chip Type | Alien/Higgs9 |
| EPC Memory | 96~496Bits |
| User Memory | Up to 688Bits |
| TID Memory | 48Bits |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | 22.5*22.5mm |
| Available Dimensions(mm) | 25*25mm |
| or Customized | |
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
