Description
Product Description:
The label is designed for users who are looking to jump start their RFID endeavors. It is usually used in retail management, such as clothing, supermarkets, unmanned retail supermarkets, etc.
Product Parameters:
| Item | Description | |

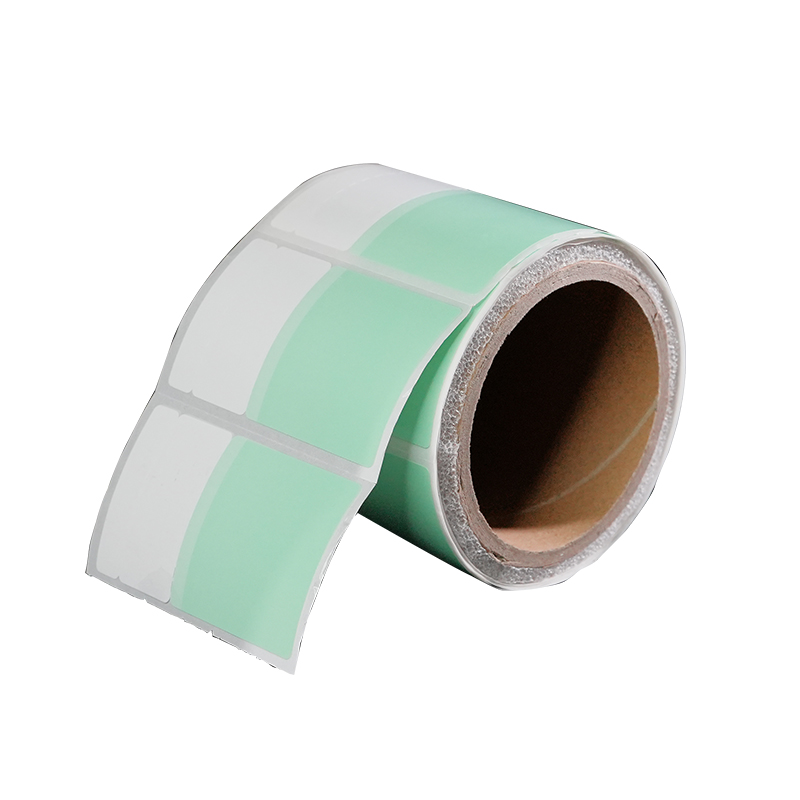

| Product | UHF RFID Label Mi3818-Monza R6-P | |
| Chip Type | Impinj/Monza R6-P | |
| EPC Memory | 128Bits | |
| User Memory | 32Bits | |
| TID Memory | 48Bits | |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO 18000-63/Gen2v2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 38*18mm | |
| Available Dimensions(mm) | 70*23mm | |
| or Customized | ||
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
