Description
Product Description:

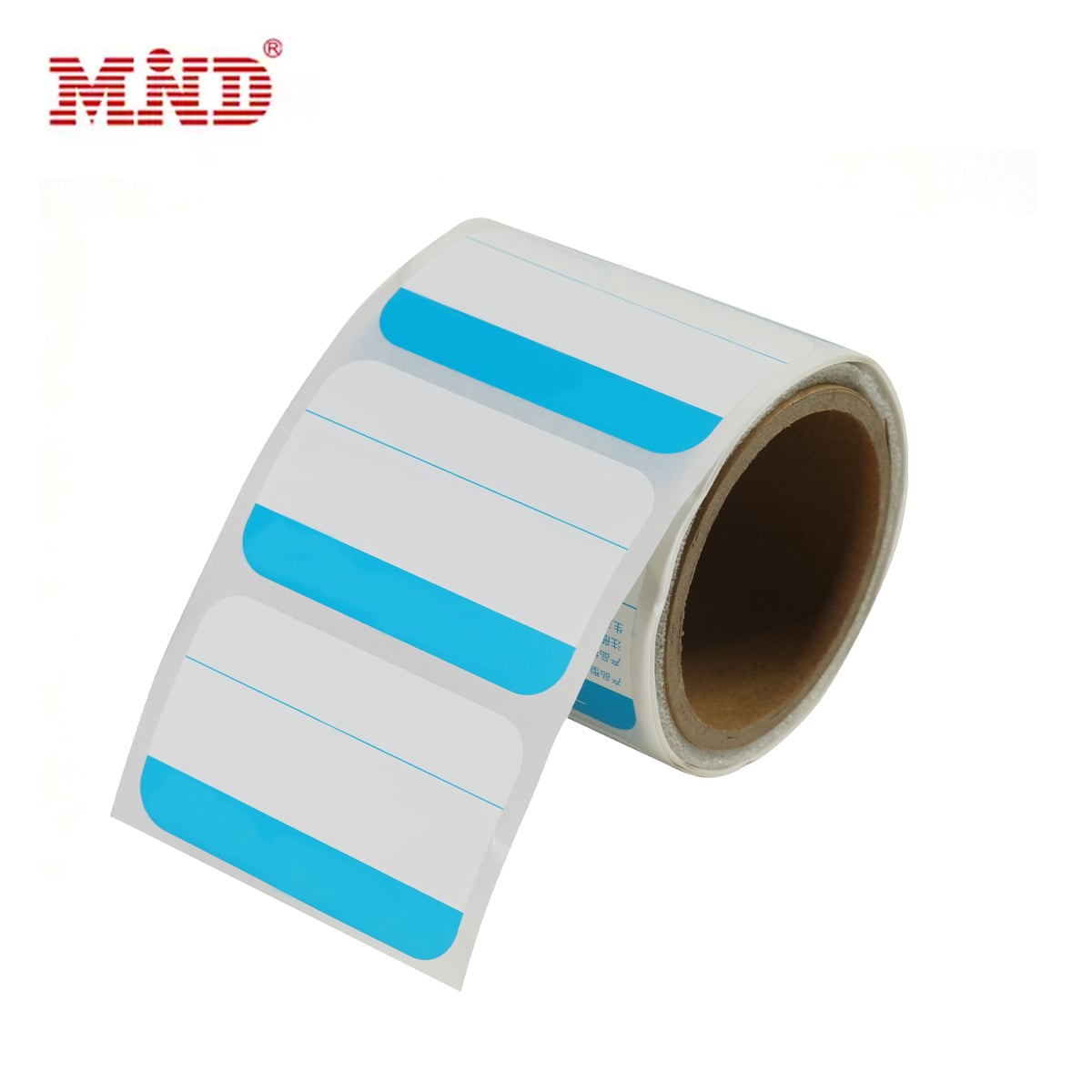

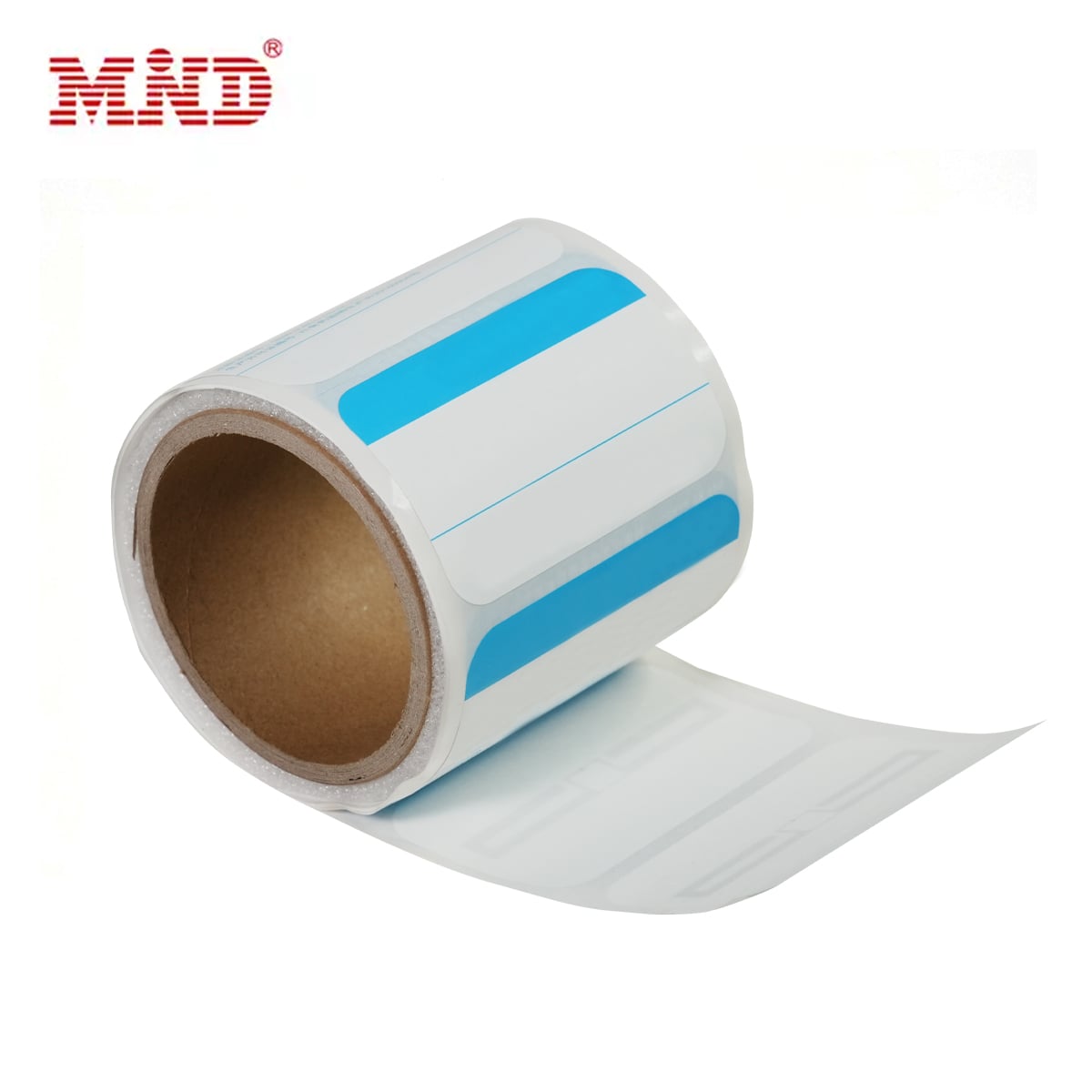

This label is mainly used in medical management of blood and other liquids stock management, high frequency and UHF antennas can be applied, according to your choice for you to customize the label
Product Parameters:
| Item | Description |
| Product | UHF RFID Label for Medical and Blood Inventory Management |
| Chip Type | HF,UHF chip all available |
| EPC Memory | 96-128Bits，96-496bits，128bits etc. |
| User Memory | 32Bits，512Bits etc. |
| TID Memory | 32-96Bits etc. |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO 18000-63/Gen2v2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| Available Dimensions(mm) | Customized |
| Application | Medical and Blood Inventory Management etc. |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
