Description
Product Description:
This antenna is designed for logistics applications. Its high efficiency and excellent performance make it widely used in warehouse management, logistics and transportation fields etc. The deployment of RFID technology in warehousing management and logistics transportation will help monitor the flow direction of products and ensure the safety of cargo transportation.
Product Parameters:
| Item | Description | |

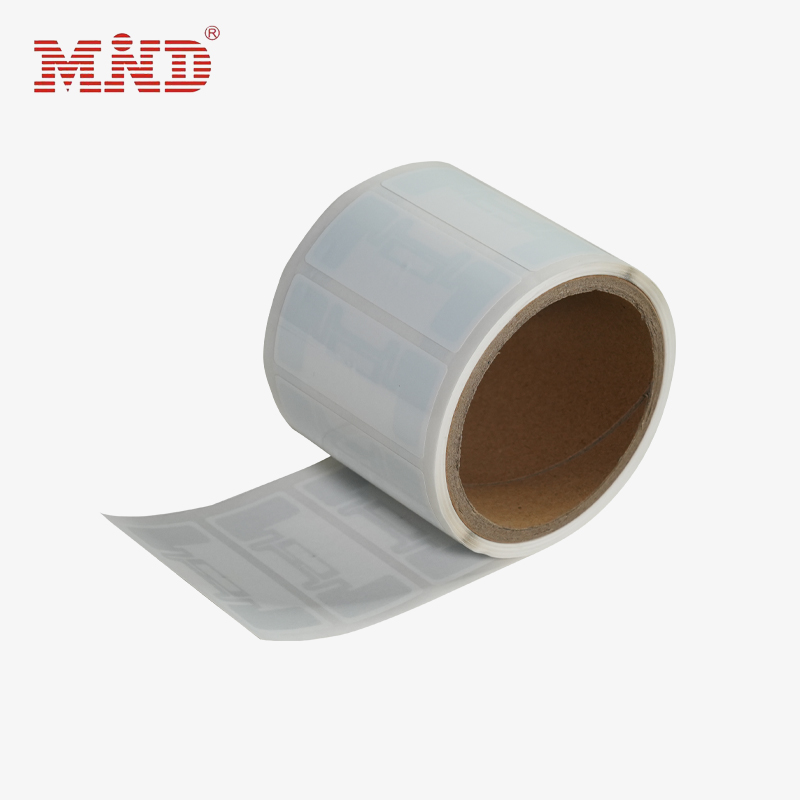

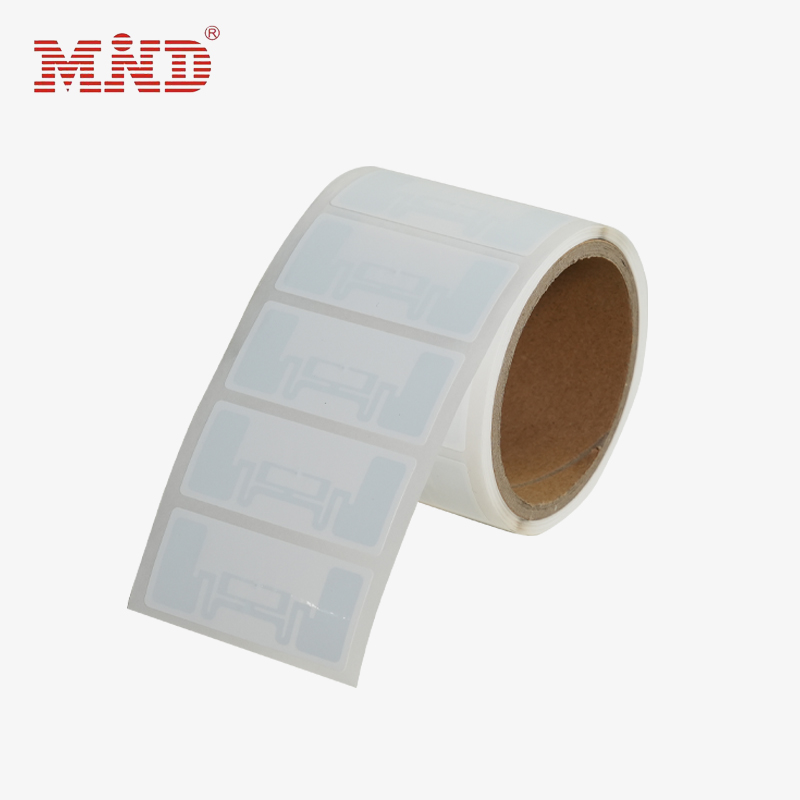

| Product | UHF RFID Label For logistics Package 6525_Qstar-56GB | |
| Chip Type | Qstar-56GB | |
| EPC Memory | -- | |
| User Memory | -- | |
| TID Memory | -- | |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | Class 1 Gen 2 ( V1.2.0) 、ISO/IEC 180006C | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 65*25mm | |
| Available Dimensions(mm) | 70*30mm | |
| or Customized | ||
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
