Description

Product Description:

Alien-9662 White label are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa. They comprise a rich feature set including a 32-bit TID, a 64-48-bit Unique TID for authentication serialization applications and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag's data.

Typical applications for the Short include, but are not limited to ISO/identification/credit card formats, high volume and apparel tagging, warehouse management, and general purpose asset tagging.

Product Parameters:

Item Description

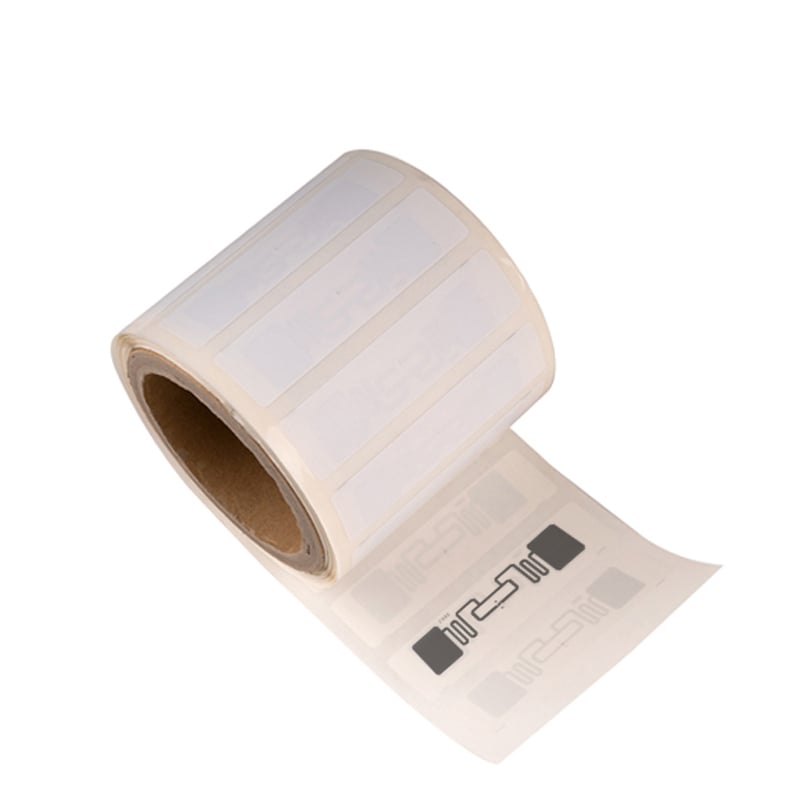

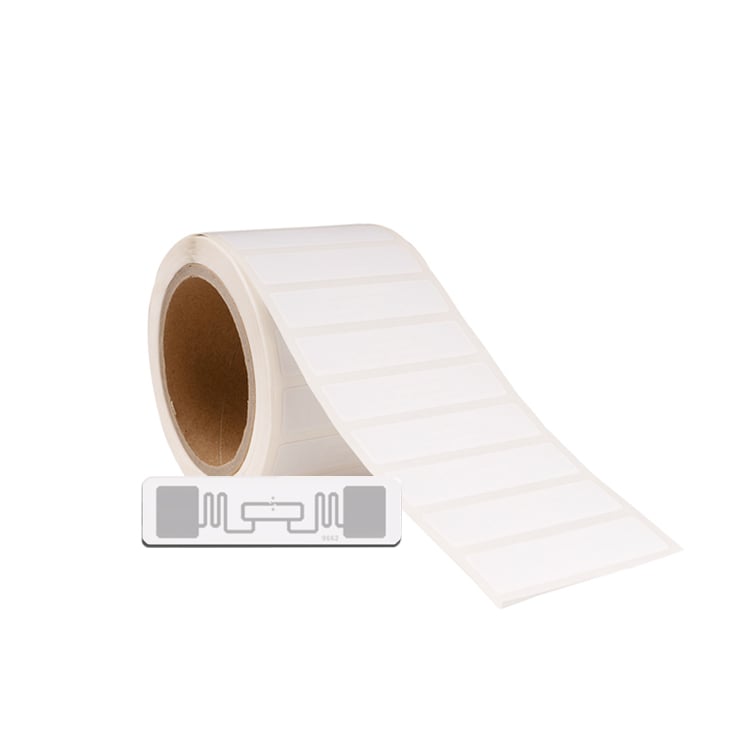

Product UHF RFID label 9662-Higgs9
Chip Type Alien/Higgs9
EPC Memory 96~496Bits
User Memory Up to 688Bits
TID Memory 48Bits
Frequency 860~960MHz
Operating Mode Passive
Protocol ISO/IEC 18000-6C EPC Class1 Gen2
ESD Voltage Immunity 2KV Max. 2000V
IC Life 100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity [-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
ANTENNA SIZE(mm) 70*17mm
Available Dimensions(mm) 73*20mm
80*55mm
73.5*23.2mm
or Customized
Application Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking
Disclaimer Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
