Description

Product Description:

The RFID windshield label serves for the automatic, contactless identification of vehicles (Automatic Vehicle Identification, AVI) The label is attached to the inside of the windshield. The develompent of the RFID windshield label has been focused on a very high read range due to the special antenna behind the glass and a passive function without a battery. The privacy protection is realised via an untraceale command.

Product Parameters:

Item Description

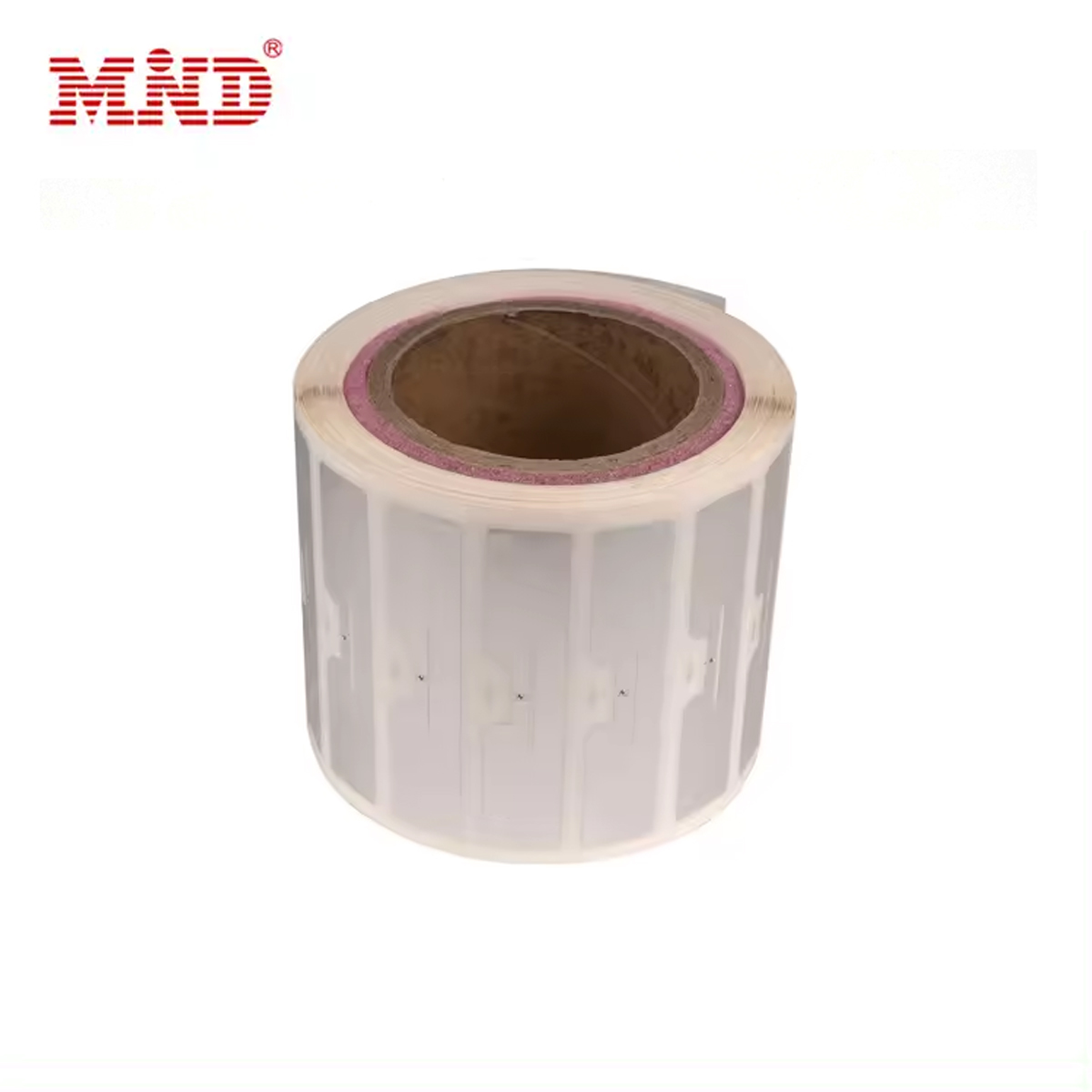

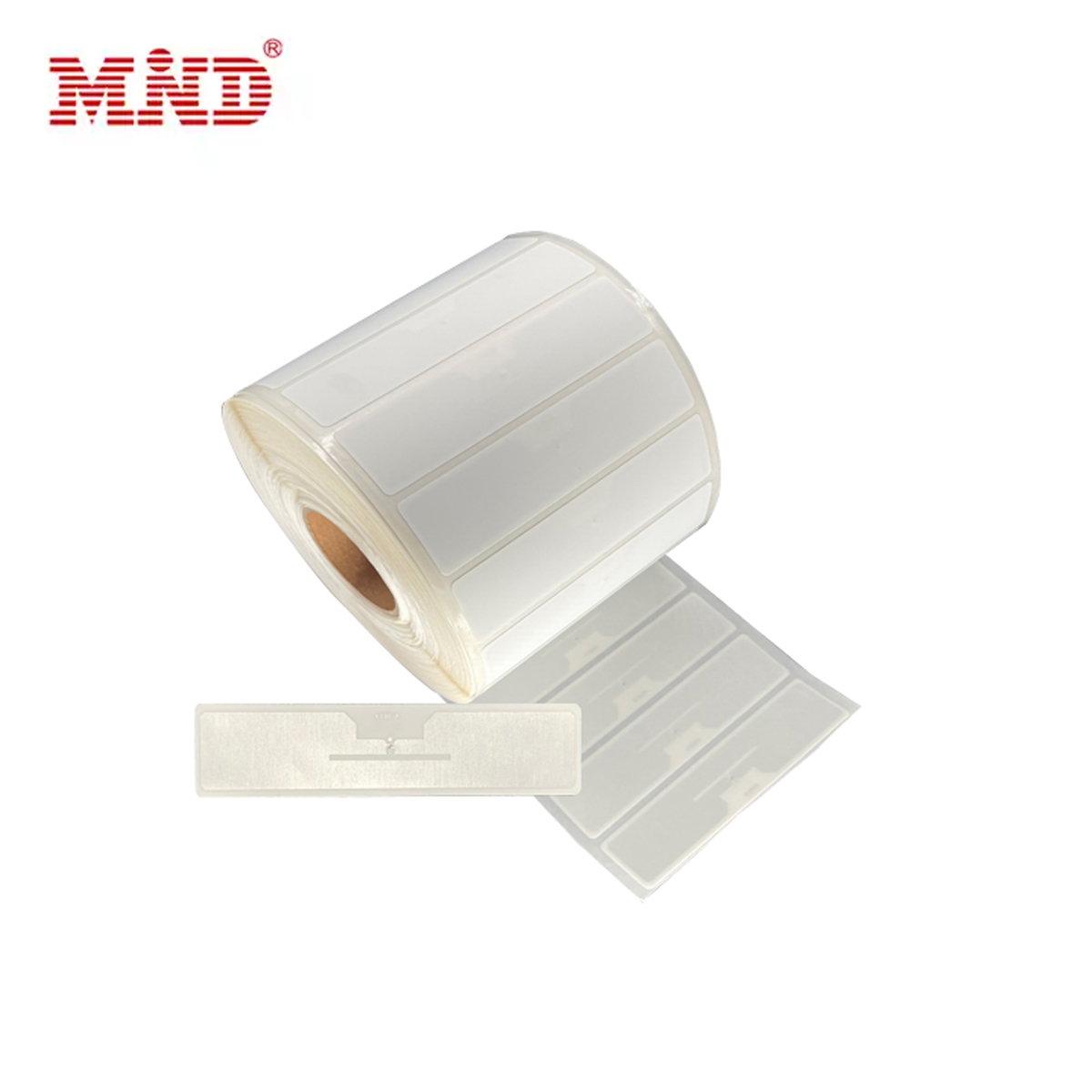

Product UHF RFID Label 9654-Higgs9
Chip Type Alien/Higgs9
EPC Memory 96~496Bits
User Memory Up to 688Bits
TID Memory 48Bits
Frequency 860~960MHz
Operating Mode Passive
Protocol ISO/IEC 18000-6C EPC Class1 Gen2
ESD Voltage Immunity 2KV Max. 2000V
IC Life 100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity [-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
ANTENNA SIZE(mm) 93*19mm
Available Dimensions(mm) 96*23mm
or Customized
Application Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking
Disclaimer Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
