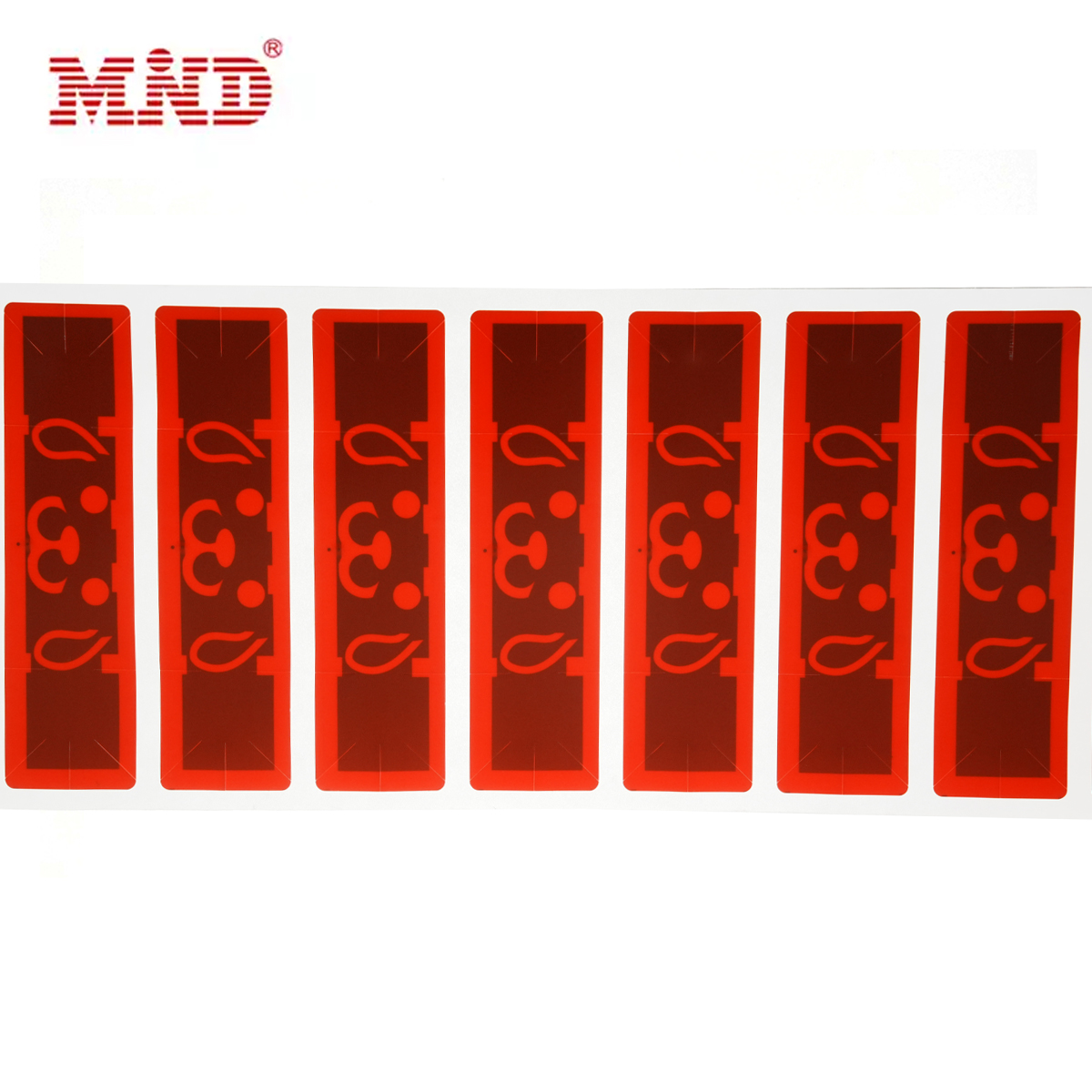

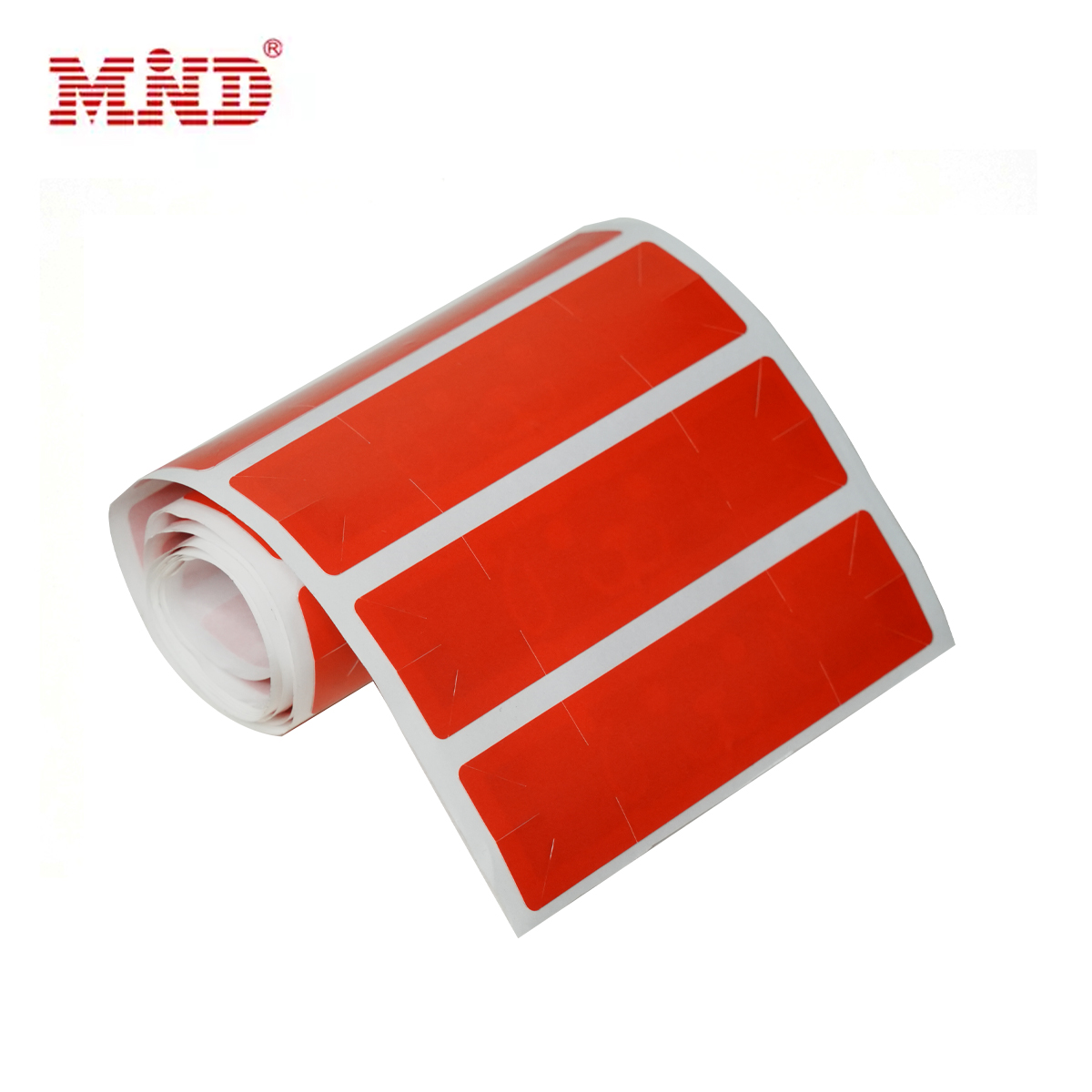

UHF RFID Fragile Windshield Label Mi9319-UCODE® 9

Description

Product Description:

The WindShield label is a battery-free UHF read only tag, suitable for long-range vehicle access applications where it is suitable to permanently and tamper evidently attach the tag to a vehicle. The non-transferable WindShield Tag is mounted on the inside of the vehicle windshield using the adhesive.

Product Parameters:

Item Description
Product UHF RFID Fragile Windshield Label Mi9319-UCODE® 9
Chip Type UCODE® 9
EPC Memory 96Bits
User Memory 0Bits
TID Memory 96Bits
Frequency 860~960MHz
Operating Mode Passive
Protocol ISO/IEC 18000-6C EPC Class1 Gen2
ESD Voltage Immunity 2KV Max. 2000V
IC Life 100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity [-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
ANTENNA SIZE(mm) 93*19mm
Available Dimensions(mm) 96*23mm
or Customized
Application Logistics, clothing,Vehicle, Unmanned retail, medical supplies management and other assets tracking
Disclaimer Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
