Description
Product Description:

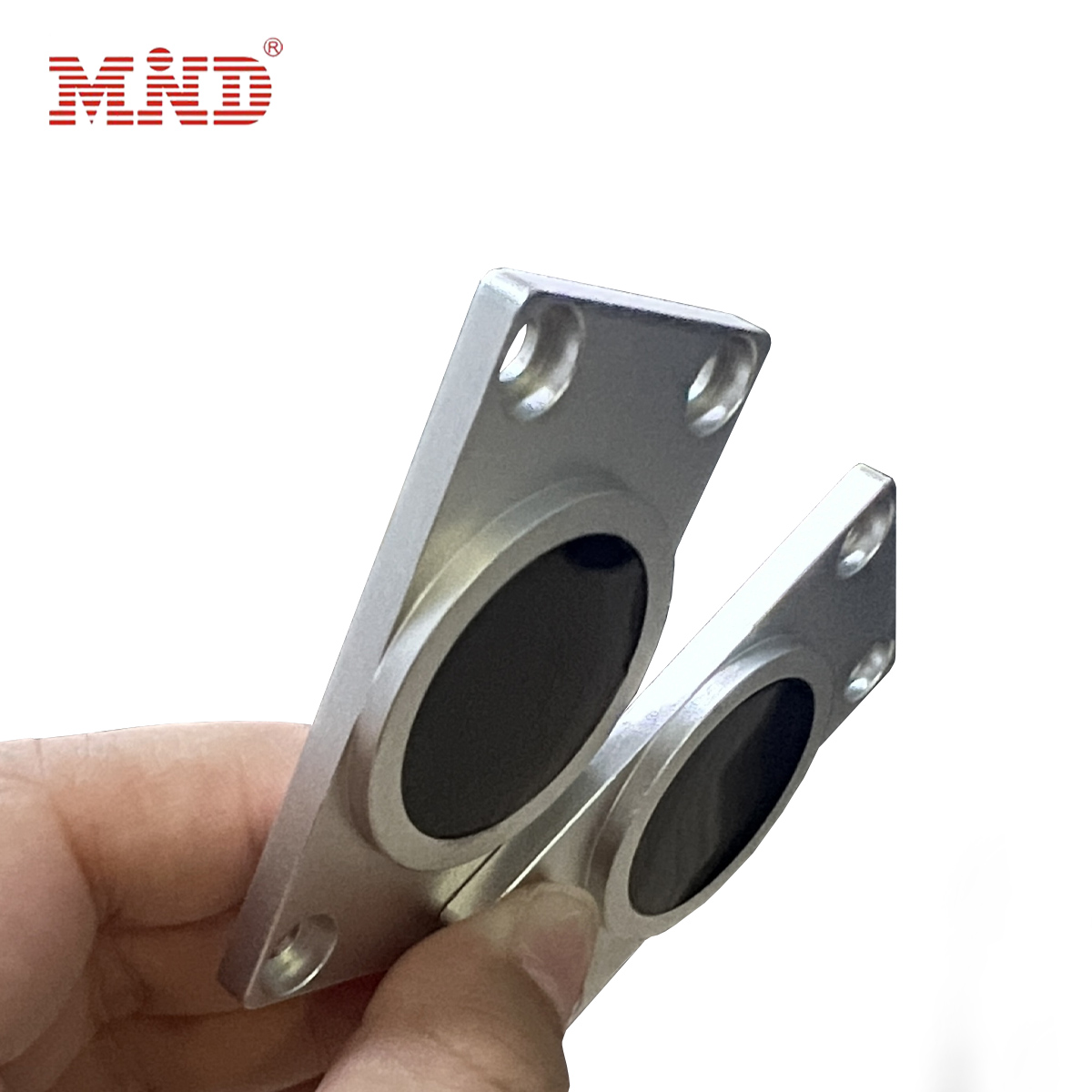

This tag, based on ceramic material packaging with high sensitivity, offers excellent performance due to its stable antenna design.

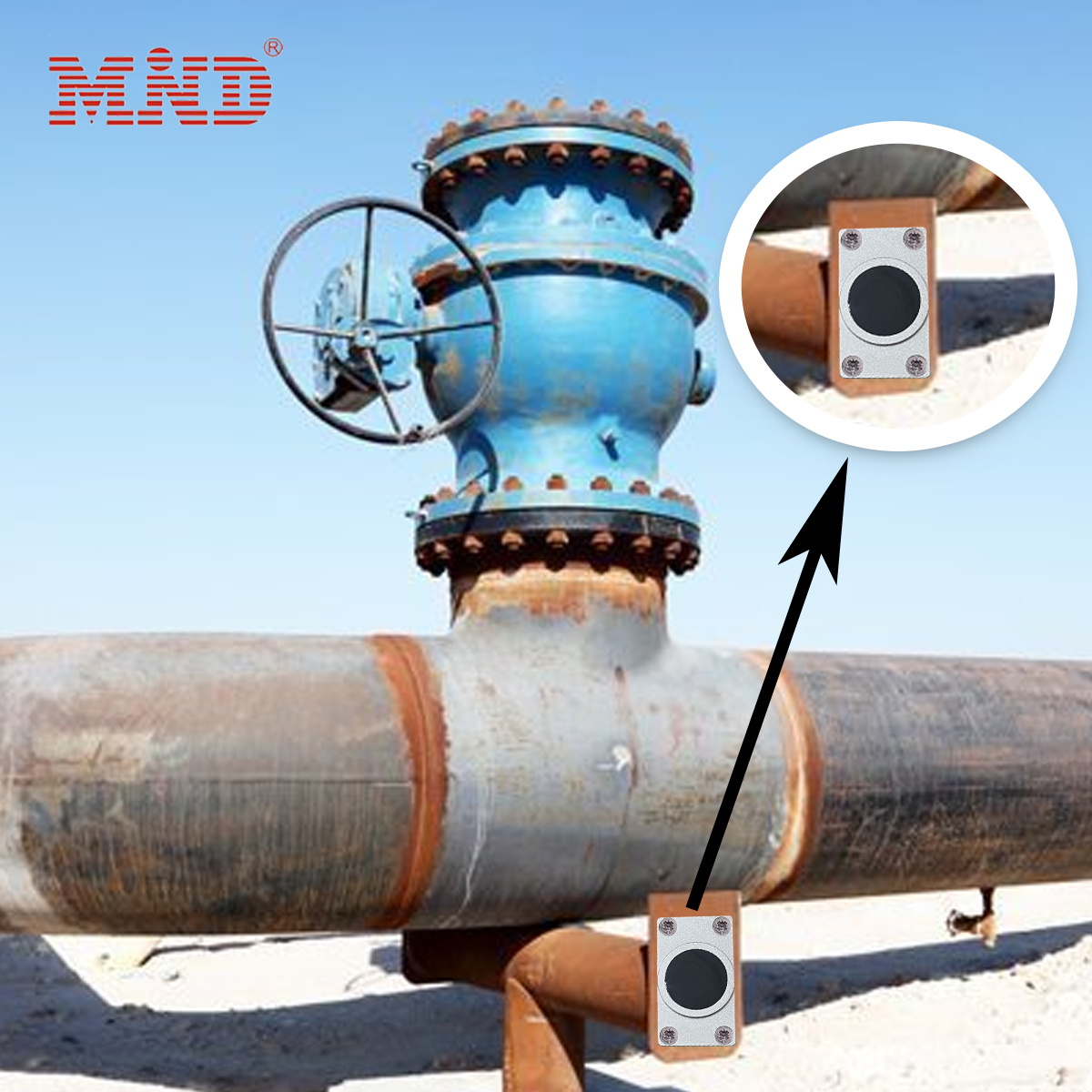

The UHF tag is suitable for a variety of harsh operating environments, including high-temperature industrial production, medical instrument sterilization, open spaces, towers near poles or the equator, utility poles, road assets, and equipment inspection tasks.
Product Parameters:
| Item | Description | ||
| Product | UHF RFID Ceramic Anti Metal Tag | ||
| Chip Type | All chips can be selected | ||
| Frequency | 865-868MHz 902-928MHz | ||
| Operating Mode | Passive | ||
| Protocol | EPC C1G2 (ISO18000-6C) | ||
| ESD Voltage Immunity | 2KV | ||
| IC Life | 100,000 Programming cycles, 10 years data retention | ||
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | ||
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | ||
| ANTENNA SIZE(mm) | According to label size | ||
| Available Dimensions(mm) | or Customized | ||
| Application | high-temperature industrial production, medical instrument sterilization, open spaces, towers near poles or the equator, utility poles, road assets, and equipment inspection tasks. | ||
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | ||
