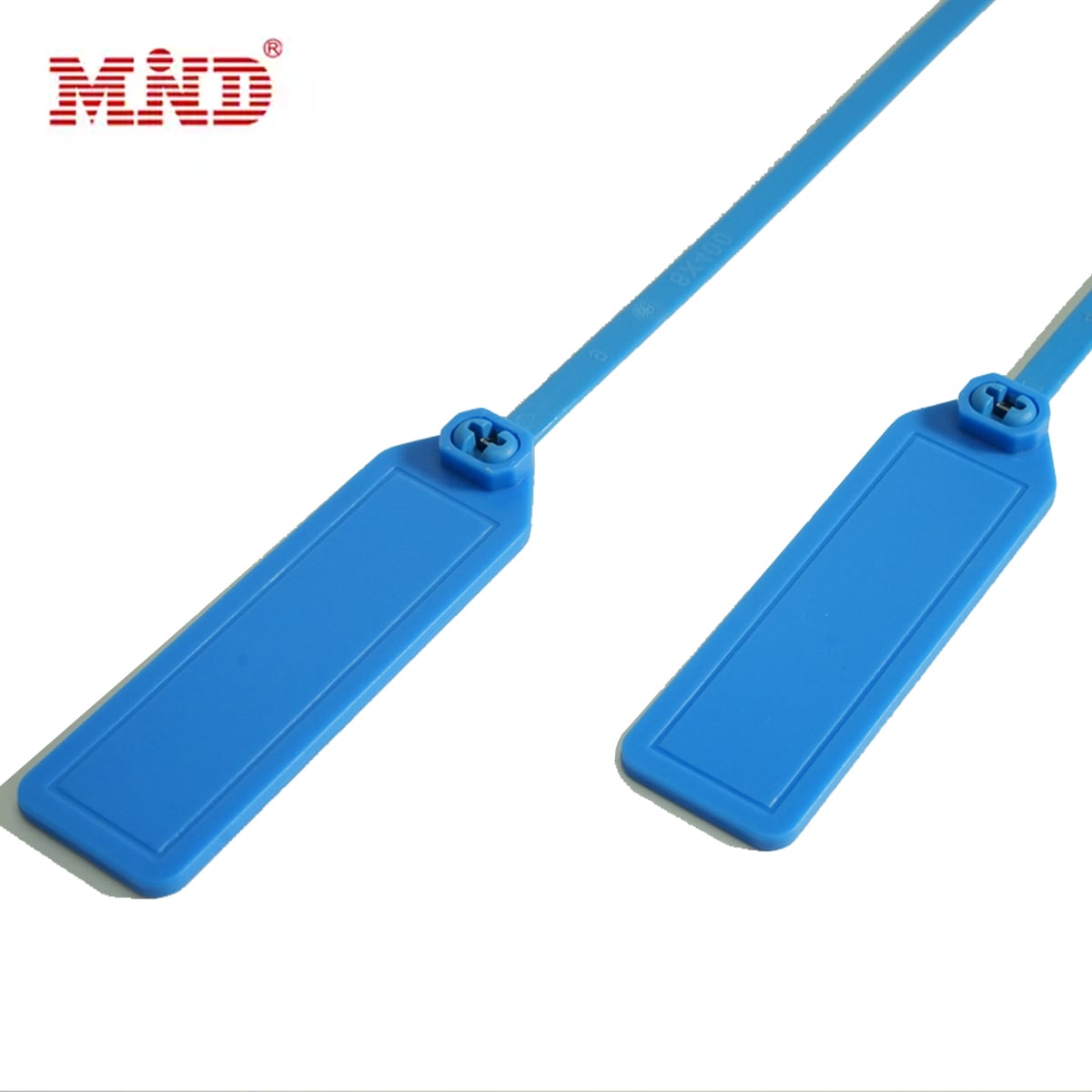

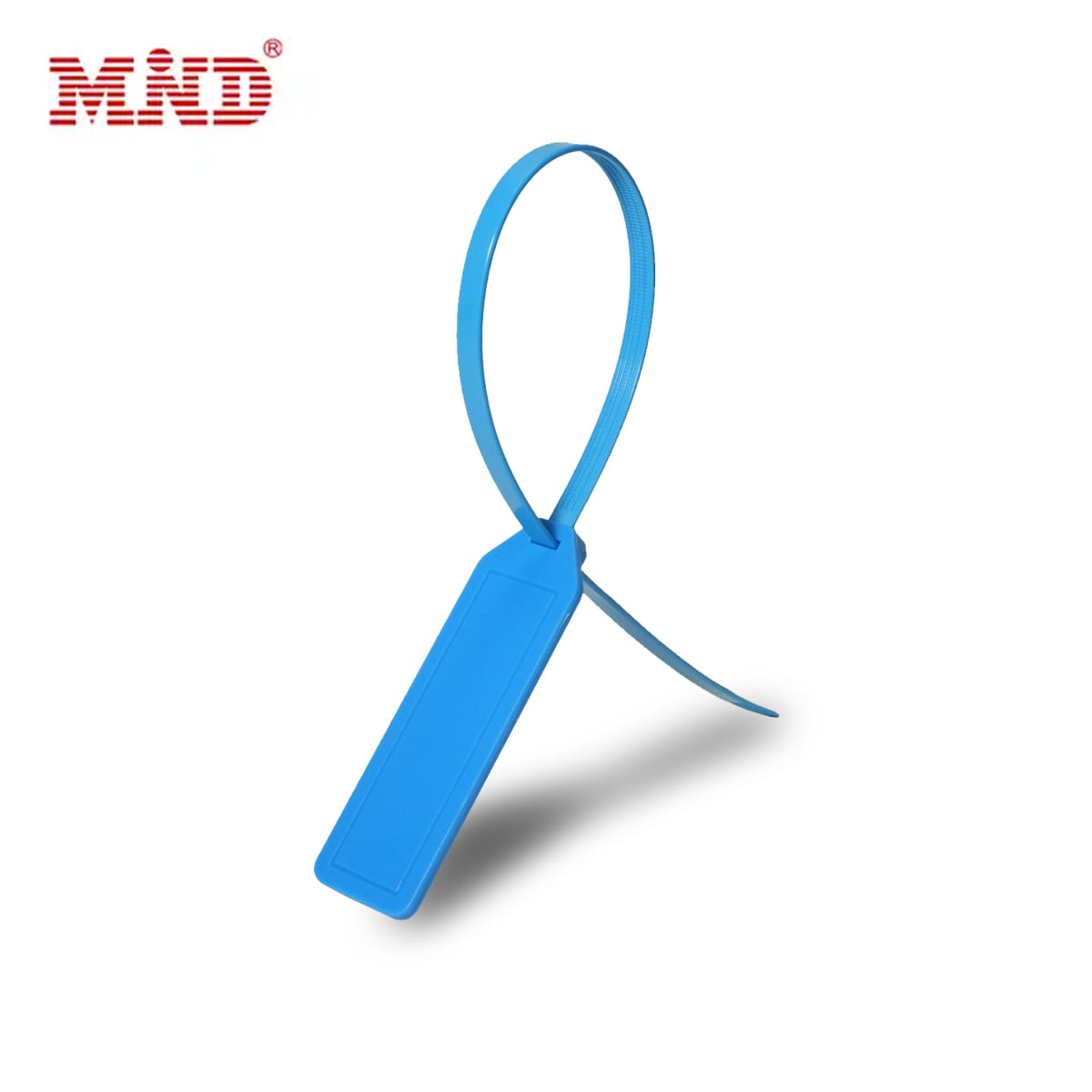

UHF RFID Cable Tie Tag

Description

Product Description:

A highly secure, high tech alternative to conventional padlocks, that combines long-range RFID-reading performance for Supply Chain solution.RFID seal tag is mainly used in Supply Chain, asset management and so on. The rfid seal tag is for disposable seals ,When you put the wire into the keyhole, the RFID seal tag has been locked, you can not open the wire again, only to cut or destroy it.RFID seal tag has a unique identification number that can identify track your assets fastly

Such RFID seal Tag is made of robust Nylon Plastic for indoor and outdoor application environment.
It contains a POCKET,which can be encapsulated with LF, HF or UHF antenna.
You can choose one to build an automatic tracking system and achieve your project objective.

Product Parameters:

Item	Description
Product	UHF RFID Cable Tie Tag
Chip Type	All UHF tags are optional
Memory	according to the chip
Frequency	860～960MHz
Operating Mode	Passive
Protocol	ISO 18000-63/Gen2v2
ESD Voltage Immunity	2KV Max. 2000V
IC Life	100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity	[-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity	From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
Flag Size(mm)	53.5mm*30mm*3.1mm
Nylon tie Length（mm）	277.5mm*7.6mm*1.9mm
Available Dimensions(mm)	or Customized
Application	Cable management and other assets tracking
Disclaimer	Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
