Description
Product Description:

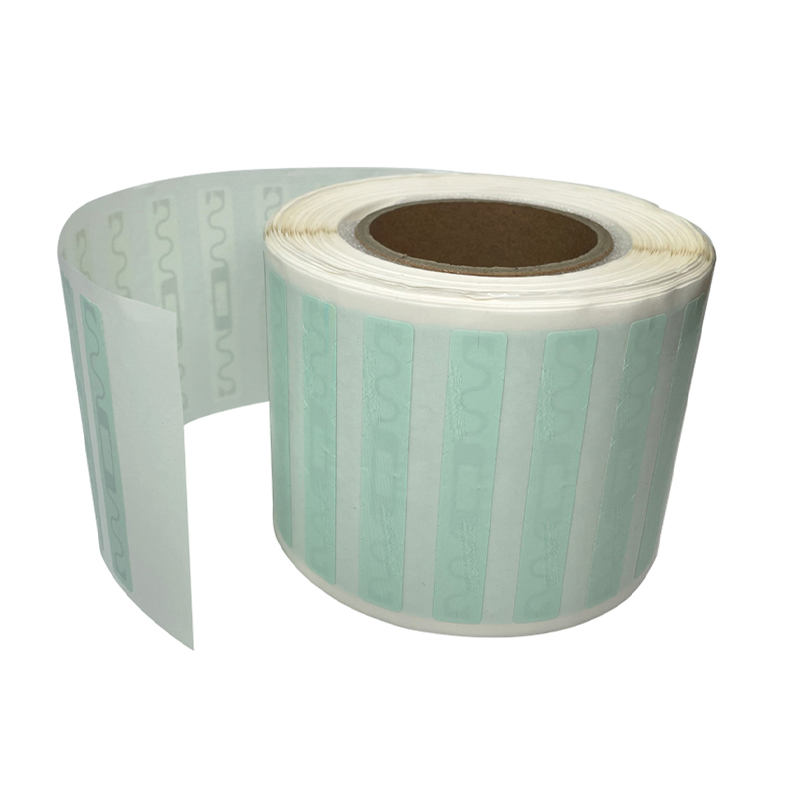

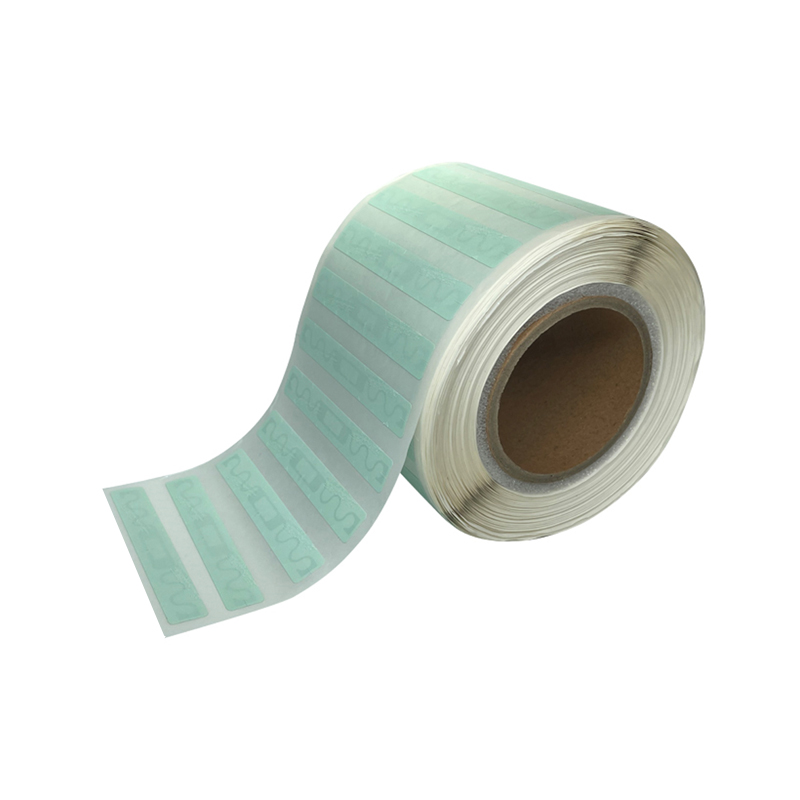

The Mi9508 is a high-performance UHF RFID tag designed by MIND for archival projects, ensuring reliable and efficient tracking of valuable assets. Compliant with the ISO 18000-6C protocol, this tag offers robust functionality in demanding archival environments. The Mi9508's superior read range and durability make it an ideal choice for inventory management, document tracking, and asset protection in archives. Its compatibility with a wide range of UHF RFID readers ensures seamless integration into existing systems, enhancing the accuracy and efficiency of archival processes.
Product Parameters:
| Item | Description |
| Product | UHF RFID Archives Label Mi9508-UCODE® 8 |
| Chip Type | UCODE® 8 |
| EPC Memory | 128Bits |
| User Memory | 0Bits |
| TID Memory | 48Bits |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | 95*08mm |
| Available Dimensions(mm) | 100*15mm |
| or Customized | |
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
