Description
Product Description:
The tag is flexible and can be stuck on metallic assets easily, specially for irregular and uneven surface,such as steel boiler, metal container,steel pipe,etc .It has good performance on metal and can be printed with logo,numbers,text by RFID printers,etc
Product Parameters:
| Item | Description |

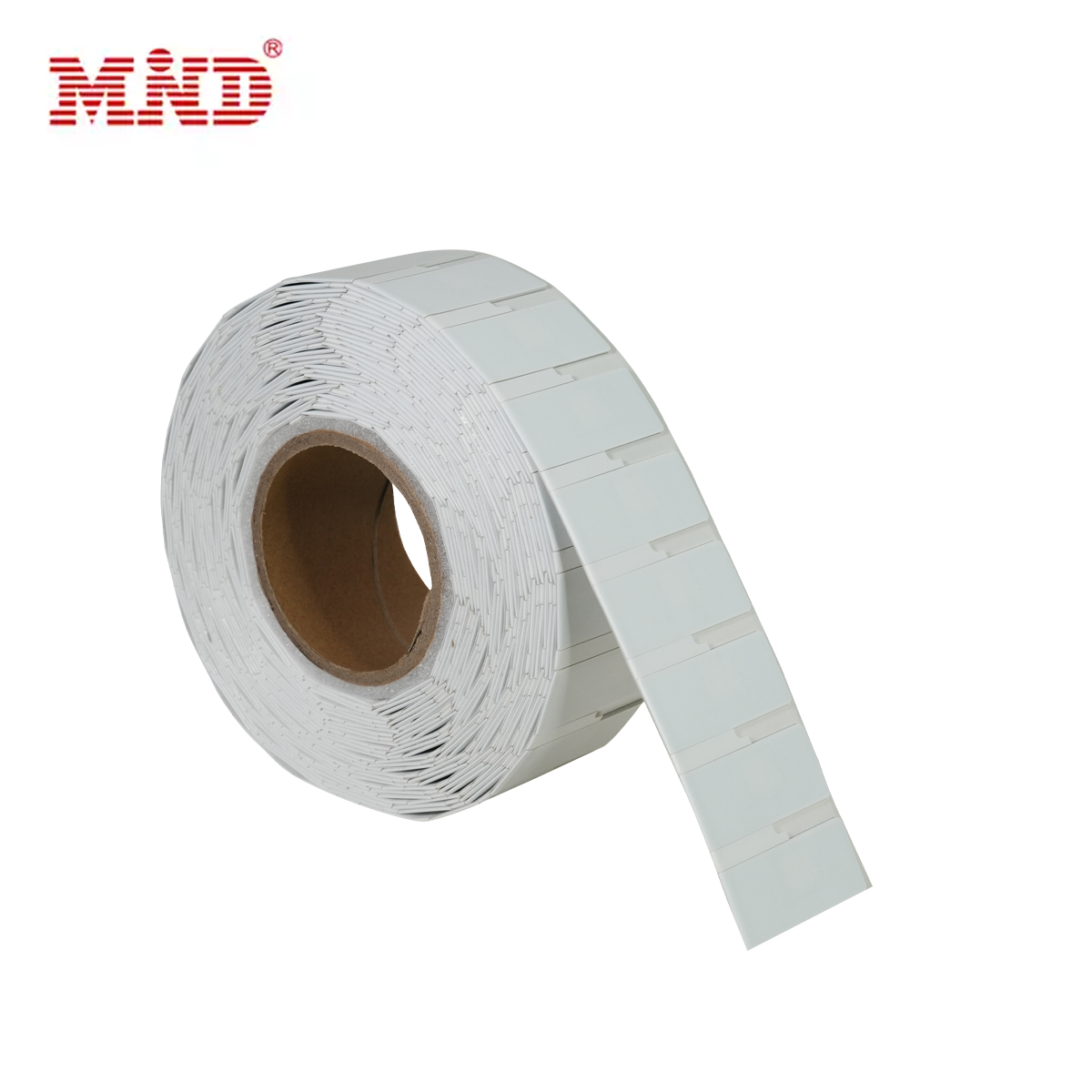

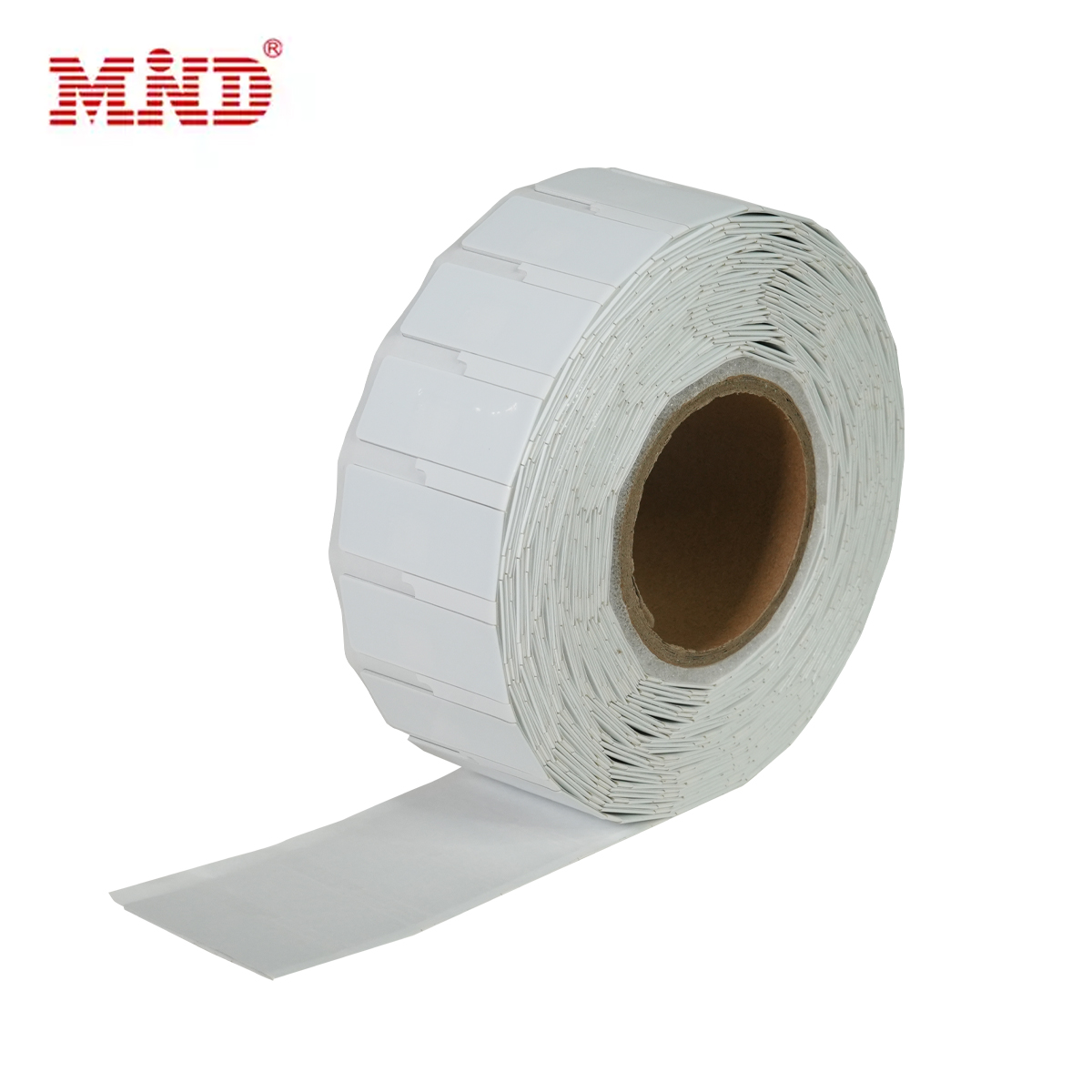

| Product | Printable UHF On-metal Label MR6025-UCODE® 8 |
| Chip Type | UCODE® 8 |
| EPC Memory | 128Bits |
| User Memory | 0Bits |
| TID Memory | 48Bits |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| Available Dimensions(mm) | 60*25*1.35mm |
| or Customized | |
| Application | Warehouse shelfIT asset trackingMetallic container trackingEquipment&device trackingAutomotive components tracking, etc. |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
