Description
Made from rugged PCB material, it is designed to operate efficiently on metal surfaces, overcoming the limitations of traditional RFID tags in such environments. Built to withstand challenging environments, it ensures durability and long-term functionality even in harsh conditions. This makes it ideal for industrial applications where standard RFID tags may not perform effectively.
| Item | Description | ||

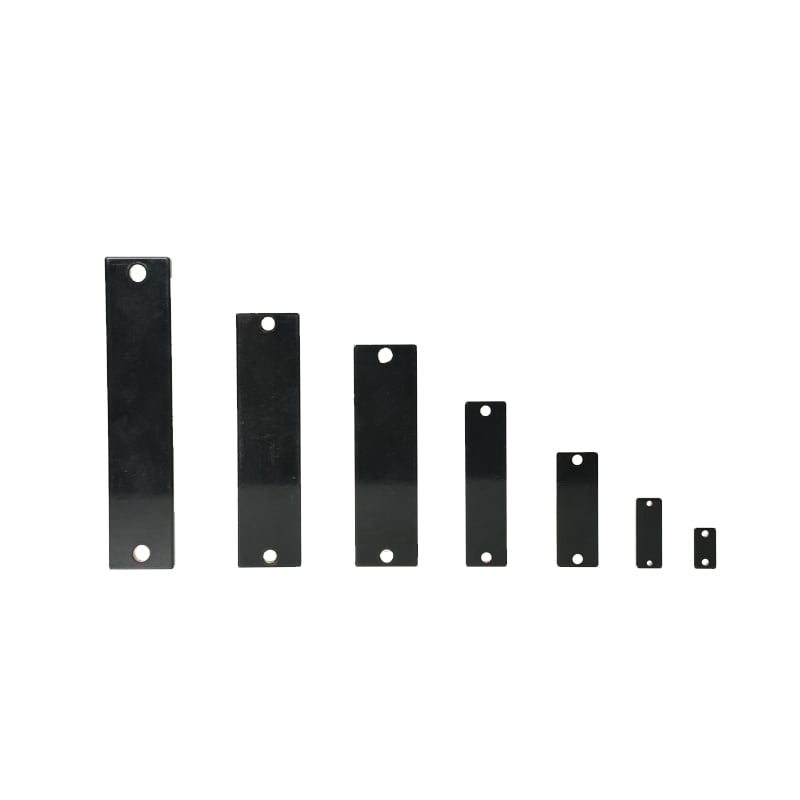

| Product | PCB UHF On-metal Label MP2208-UCODE® 8 | ||
| Chip Type | UCODE® 8 | ||
| EPC Memory | 128 bits | ||
| User Memory | 0 Bits | ||
| TID Memory | 48 Bits | ||
| Material | Copper +Fr4 | ||
| Frequency | 902- 928MHz(US) | ||
| Operating Mode | Passive | ||
| Reading distance (fixed reader) | 1 m (metal surface) | ||
| Reading distance (Handheld reader) | 0.3-0.5 m (metal surface) | ||
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen | ||
| IC Life | 10 years data retention | ||
| Operating Temperature/Humidity | （-40℃ to +85℃） | ||
| Storage Temperature/Humidity | （-40℃ to +85℃ ） | ||
| TAG SIZE(mm) | 13*7*3.2mm | ||
| or Customized | |||
| Weight | 0.5g | ||
| Application | Tool tracking, weapon tracking, medical equipment management, instrument tracking, production line equipment, IT/ telecom management etc | ||
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | ||
