Product Description:
The QT function of M4QT chip is almost unique to the whole field, divided into public and private data storage mode, higher security.
Omnidirectional labels are used in the archives management, clothing industry, retailers and logistics supply chain.
Product Parameters:
| Item | Description | |

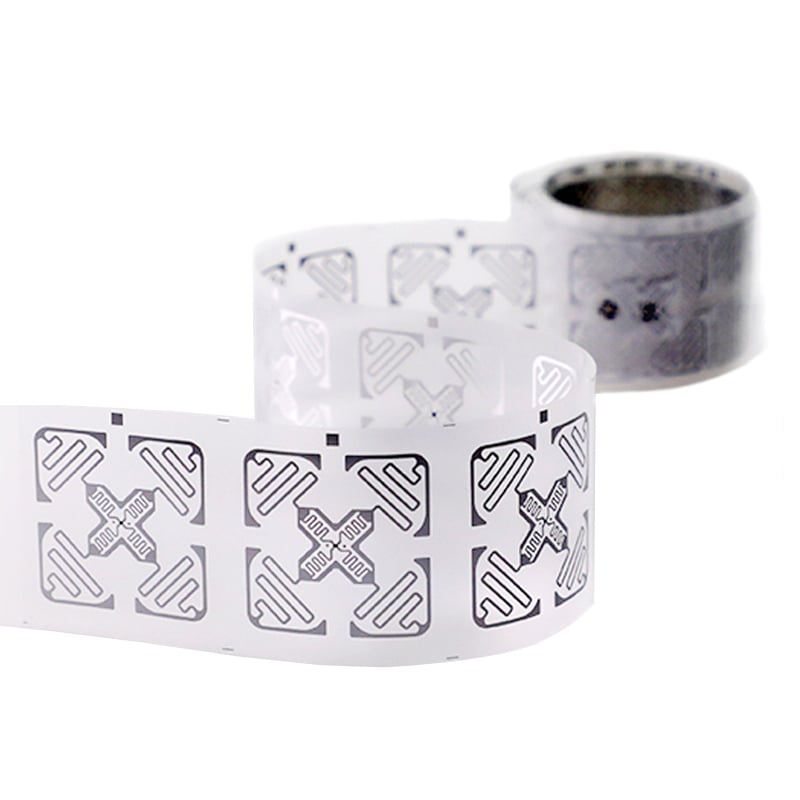

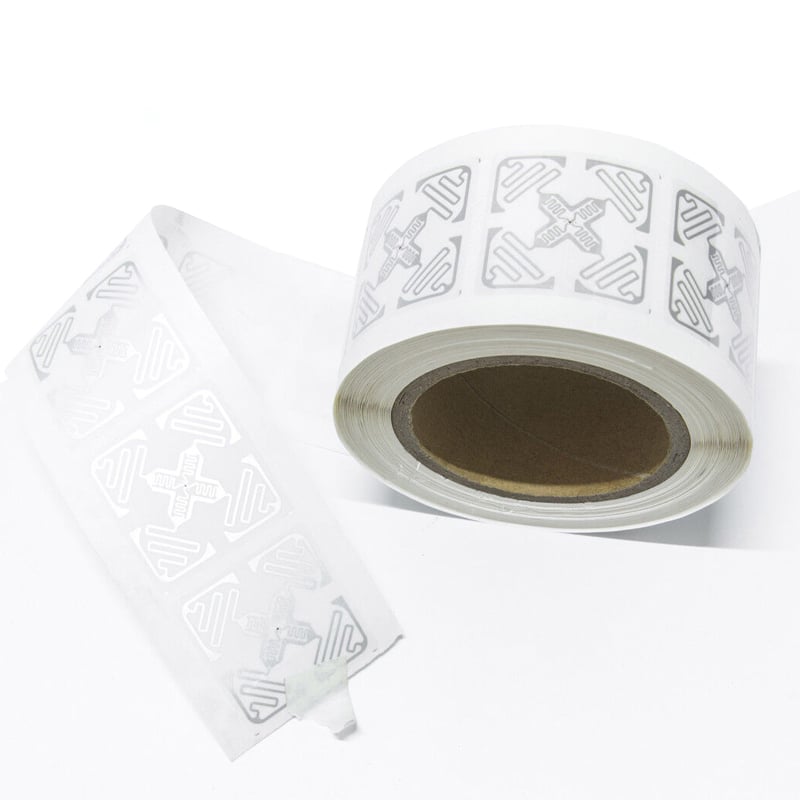

| Product | Omnidirectional UHF RFID Label H47-Monza M4QT/M4E | |
| Chip Type | Impinj/Monza 4E | Impinj/monza 4QT |
| EPC Memory | 96Bits | 96-128Bits |
| User Memory | 128Bits | 512Bits |
| TID Memory | 48Bits | 32-96Bits |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO 18000-63/Gen2v2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 44*44mm | |
| Available Dimensions(mm) | 50*50mm | |
| or Customized | ||
| Application | Logistics, clothing, Unmanned retail, medical supplies management and other assets tracking | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
