Product Description:
The NTAG® 424 DNA chip sets a new standard in NFC and secure IoT applications. The new chip generation offers state-of-the-art security and privacy protection features. For this purpose, the chip is made with attack-resistant certified silicon.
The NTAG® 424 DNA chip is designed to support operations protected by AES-128 encryption, including a new SUN (Secure Unique NFC message) authentication mechanism, as well as the protection of sensitive data with encrypted access permissions.
These features allow advanced product and content protection, as well as secure and unique user experiences in real time. The Secure Unique NFC function generates a unique and secure authentication code whenever the Tag is read.
With the SUN function, an NDEF message (readable by any NFC smarpthones) is generated, using an encryption algorithm that includes: URL, UID, counter scan, and AES key.
Product Parameters:
| Item | Description |

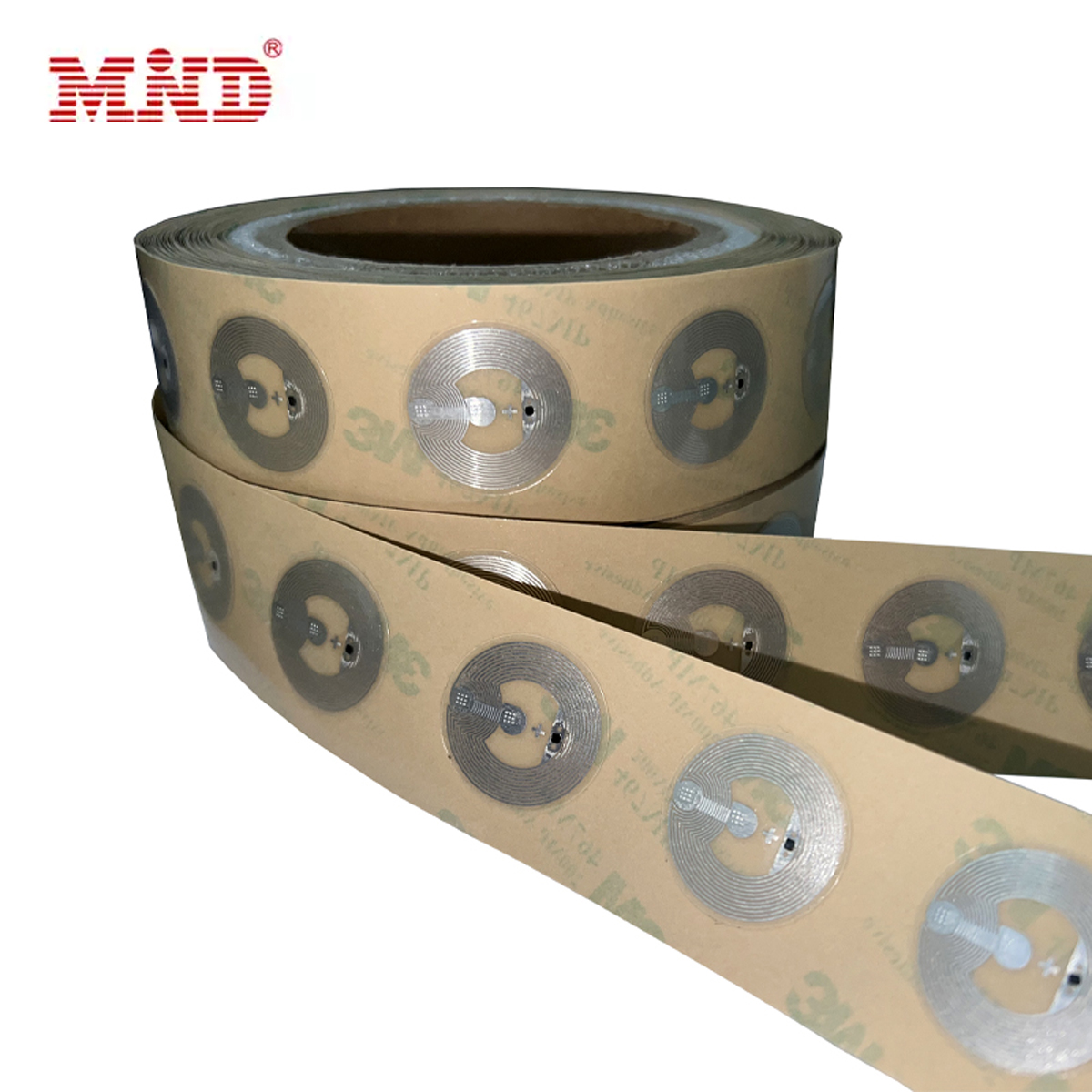

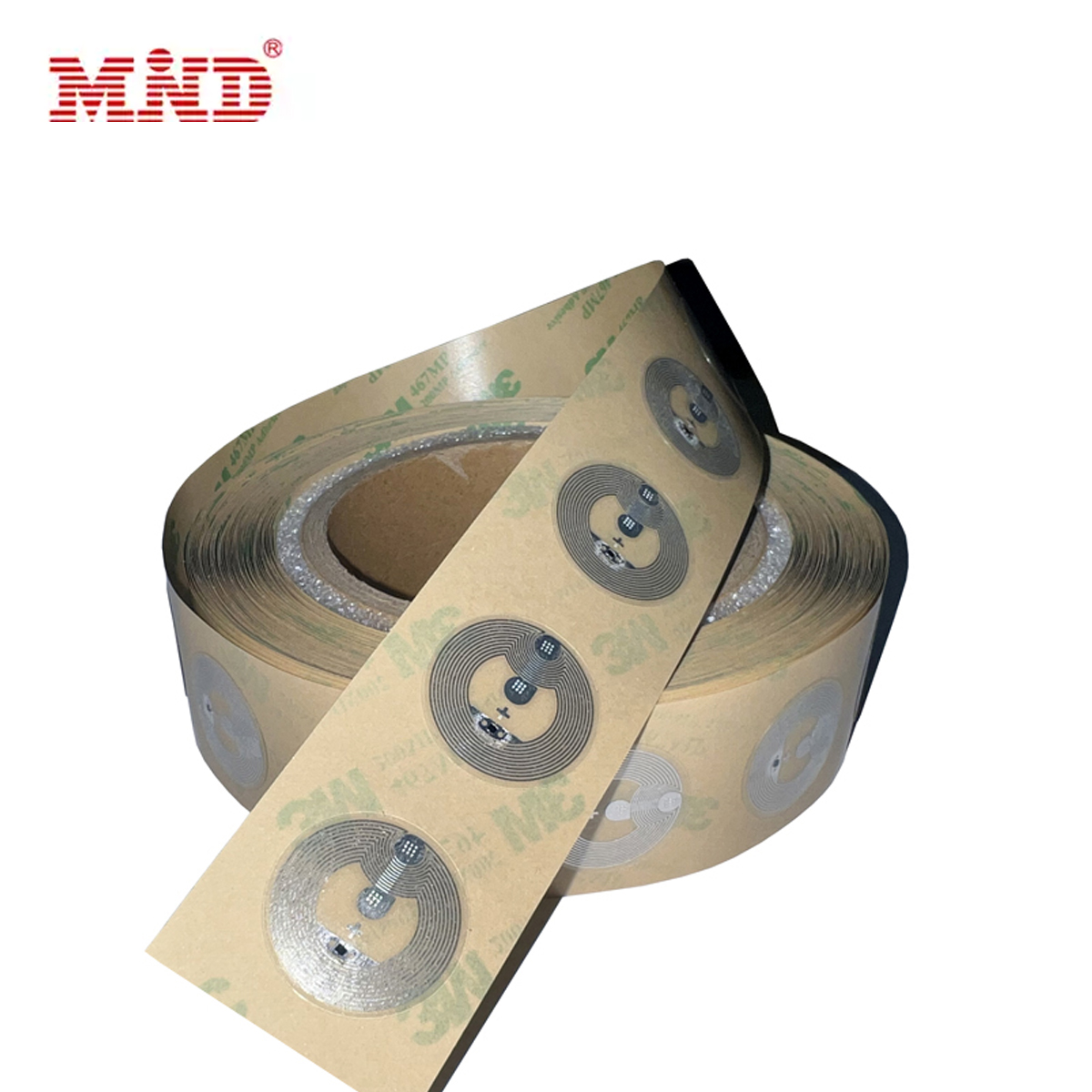

| Product | NFC NTAG® 424 DNA Tamper Proof stickers Miφ15 |
| Chip Type | NTAG® 424 DNA |
| User Memory | 128 bits |
| Frequency | 13.56MΗz |
| Operating Mode | Passive |
| Protocol | ISO 14443A |
| ESD Voltage Immunity | 2KV |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | Dia 15mm |
| Available Dimensions(mm) | Dia 25mm |
| or Customized | |
| Application | asset tracking, inventory management and access control. |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
