Description
Product Description:
RFID temperature tags can be employed in vaccine, pharmaceutical, and fresh cold chains, as well as intelligent parcel management, to monitor and control temperature, ensuring product quality and safety throughout the cold chain.
Product Parameters:
| Item | Description |

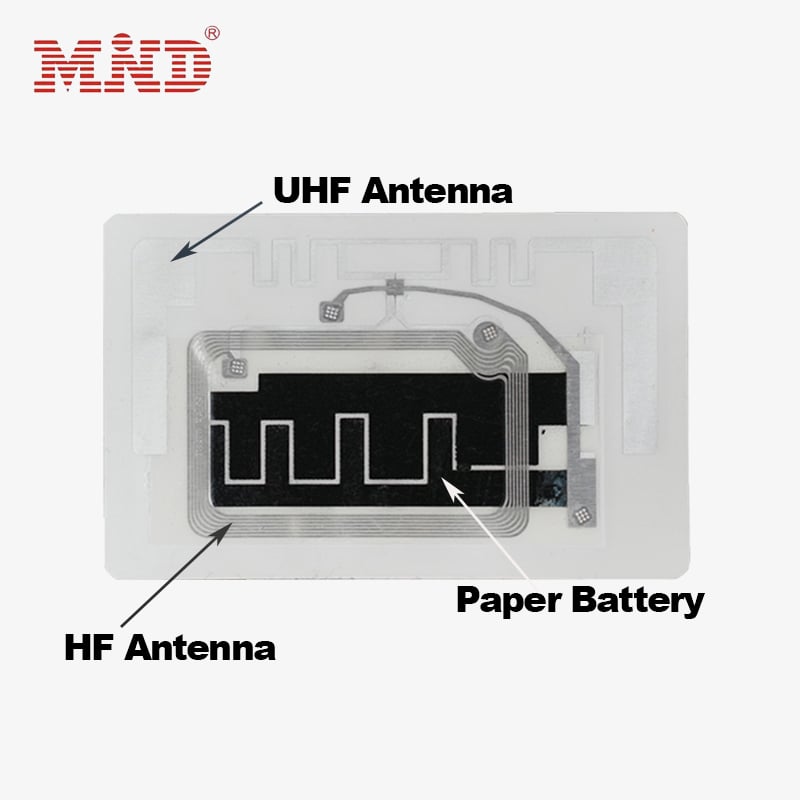

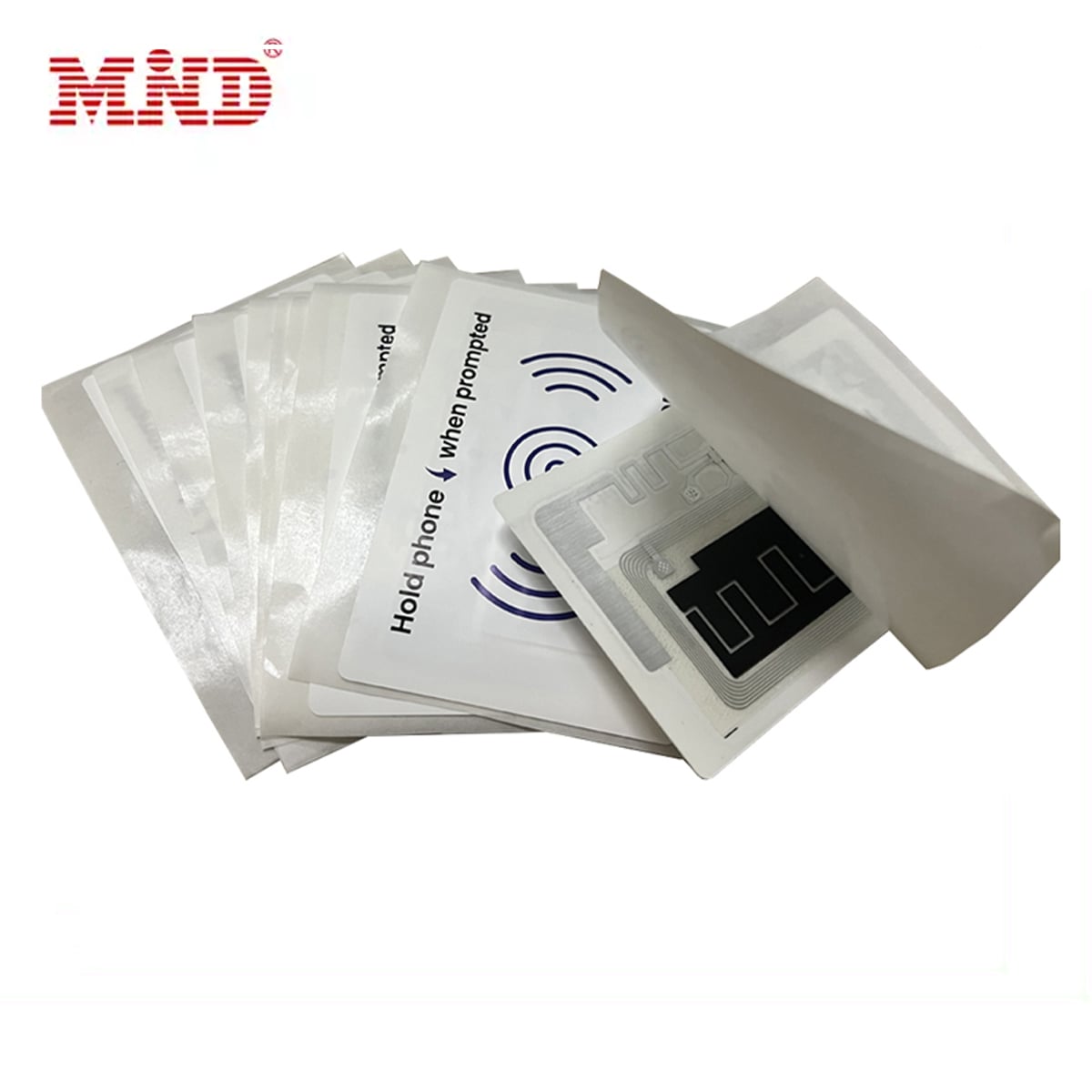

| Product | HF UHF Dual-Frequency RFID Temperature Sensor Logger Tag Mi8654TE |
| Chip Type | HF, UHF chip all available |
| EPC Memory | 96-128Bits，96-496bits，128bits etc. |
| User Memory | 32Bits，512Bits etc. |
| TID Memory | 32-96Bits etc. |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO 18000-63/Gen2v2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| Available Dimensions(mm) | Customized |
| Application | Warehouse assets and other management. |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
