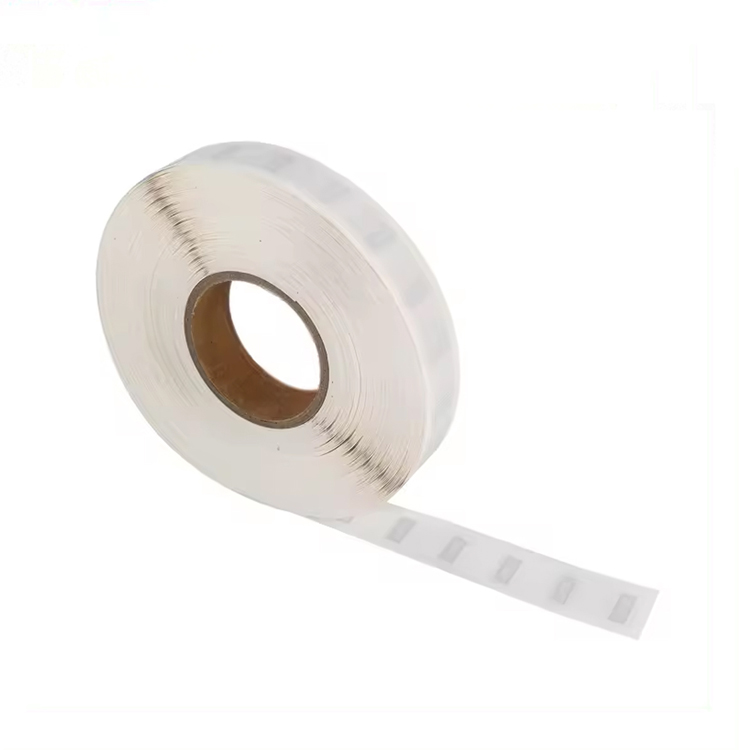

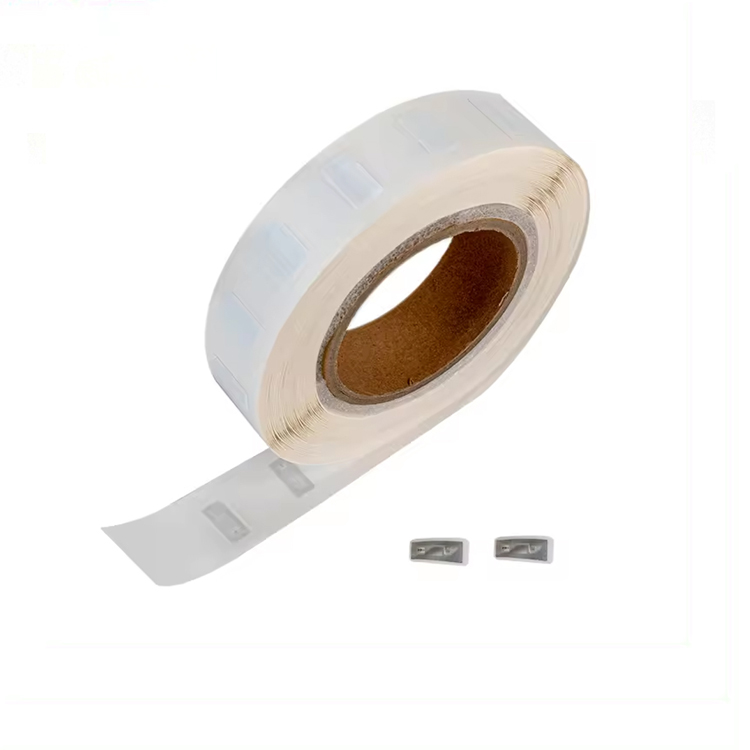

HF RFID Medical Mini Labels Mi1808

Description

Product Description:

The HF RFID Medical Mini Label Mi1808 is a compact, high-frequency RFID tag designed for specialized and efficient tracking applications in medical environments and power asset management.Its adhesive backing allows for easy application to a variety of surfaces, making it suitable for tracking medical supplies, equipment, and power assets. The Mi1808 is built to withstand diverse environments, ensuring durability and long-term functionality. This mini label is an ideal solution for businesses and organizations seeking to enhance their tracking capabilities and operational efficiency.

Product Parameters:

Item	Description
Product	HF RFID Medical Mini Labels Mi1808
Chip Type	HF chip all available
User Memory	144 bytes
Frequency	13.56MΗz
Operating Mode	Passive
Protocol	ISO/IEC 14443 A
ESD Voltage Immunity	2KV
IC Life	100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity	[-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity	From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
ANTENNA SIZE(mm)	18*08mm
Available Dimensions(mm)	21*11mm
	or Customized
Application	Medical, power asset management, etc.
Disclaimer	Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
