Description
Product Description:
The HF RFID Label 7645-NXP/ICODE® SLIX2 is a high-frequency RFID tag designed for advanced tracking and management applications. Featuring the NXP ICODE® SLIX2 chip and compliant with ISO 15693 protocols, this label data integrity, and security. Its adhesive backing allows for easy and secure attachment to various surfaces, making it ideal for asset tracking, inventory management, library systems, and access control. The Label is engineered for reliability and durability in diverse environments, providing a robust solution to enhance operational efficiency and tracking accuracy.
Product Parameters:
| Item | Description |

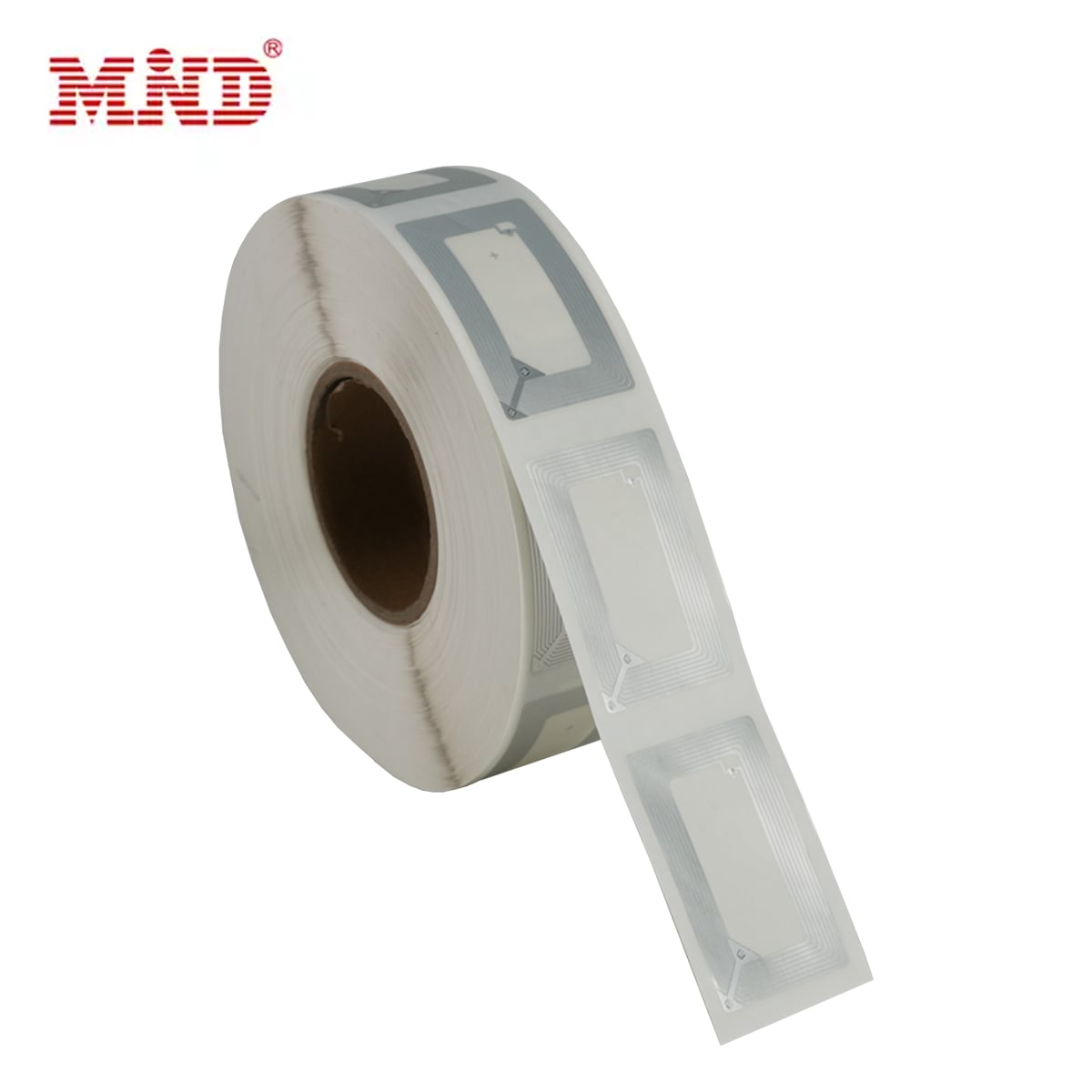

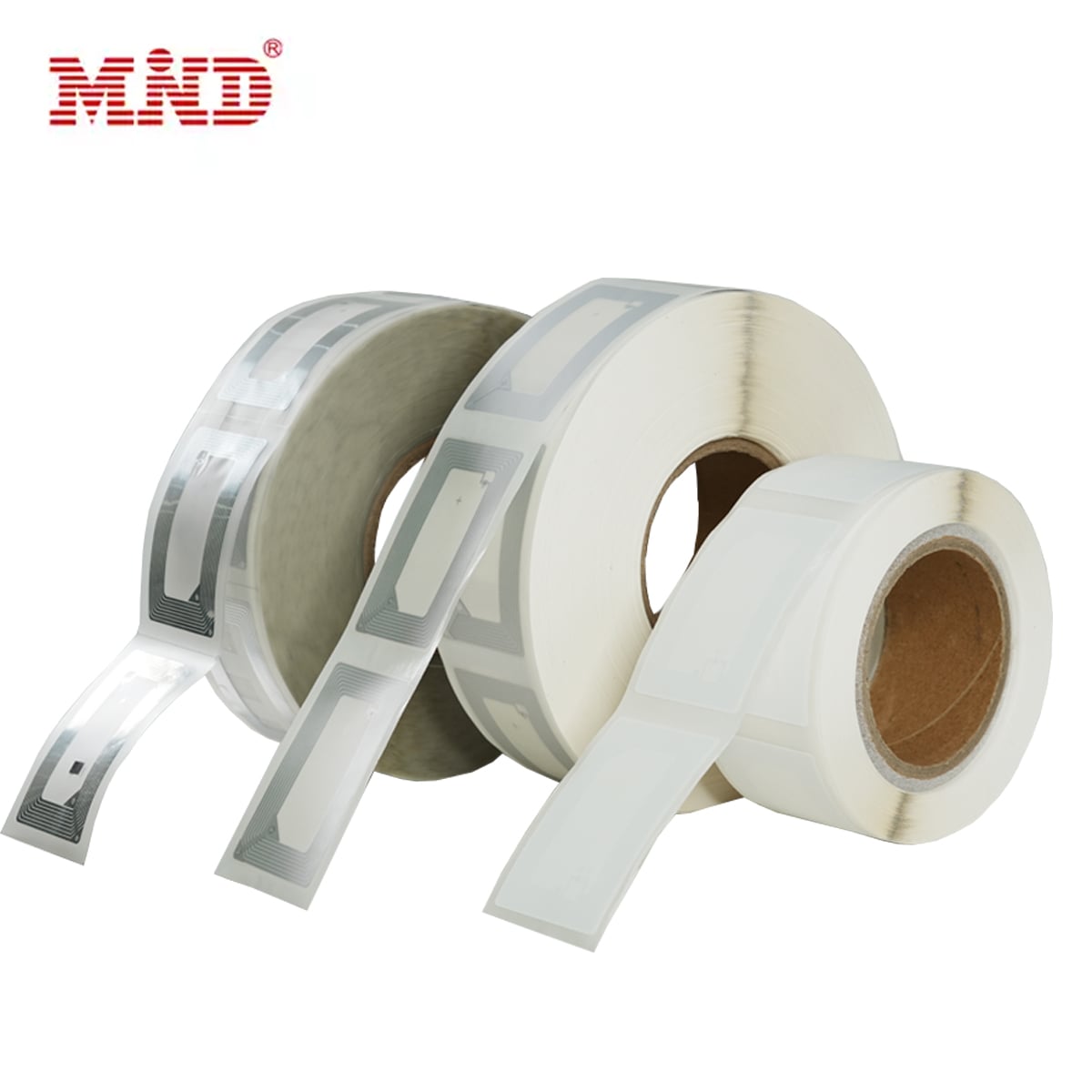

| Product | HF RFID Library Book Label 7645 Wet Inlay |
| Chip Type | ICODE® SLIX2 |
| User Memory | 2518 bits |
| Frequency | 13.56MΗz |
| Operating Mode | Passive |
| Protocol | ISO 15693 |
| ESD Voltage Immunity | 2KV |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | 76*45mm |
| Available Dimensions(mm) | 52*83mm |
| or Customized | |
| Application | asset tracking, inventory management and access control. |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
