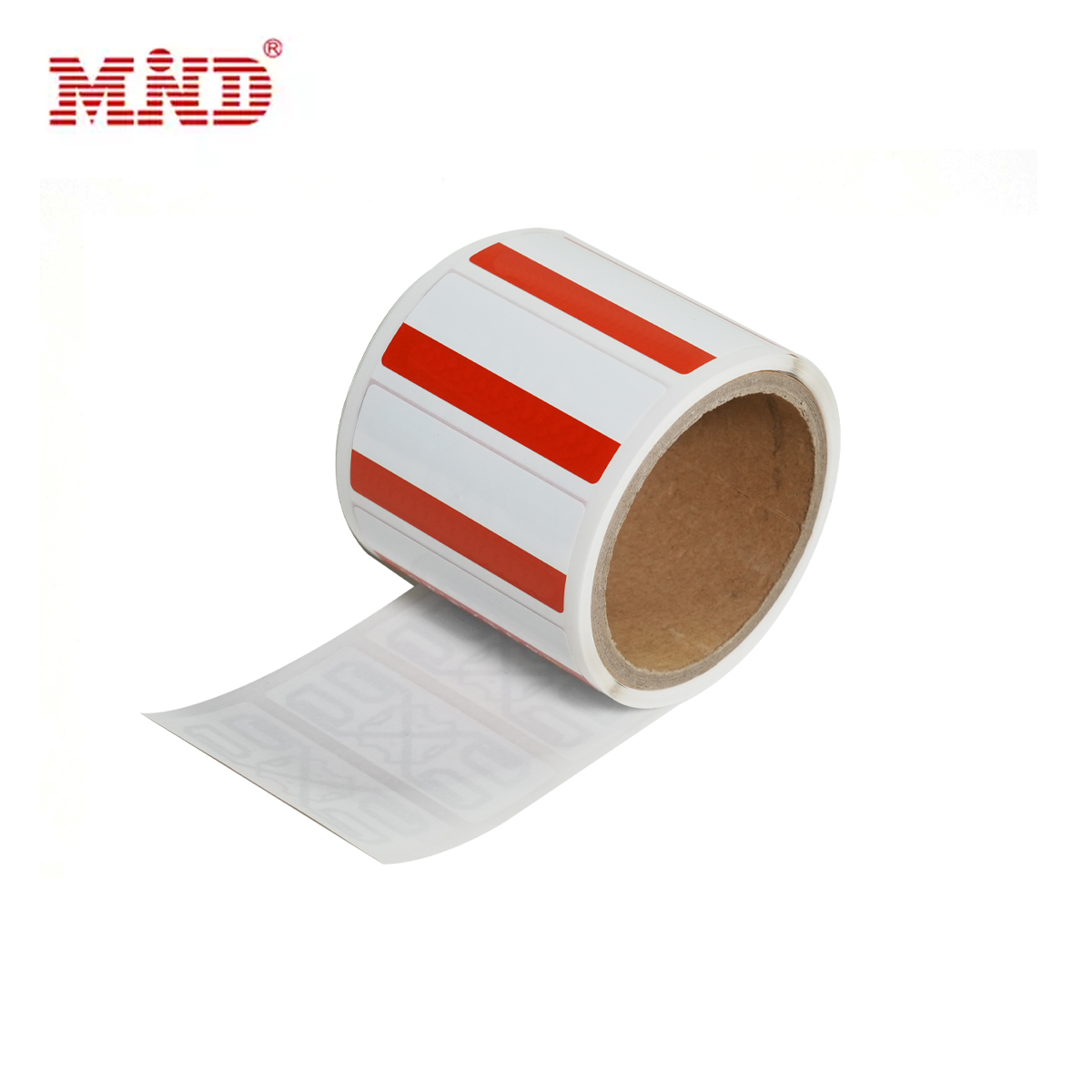

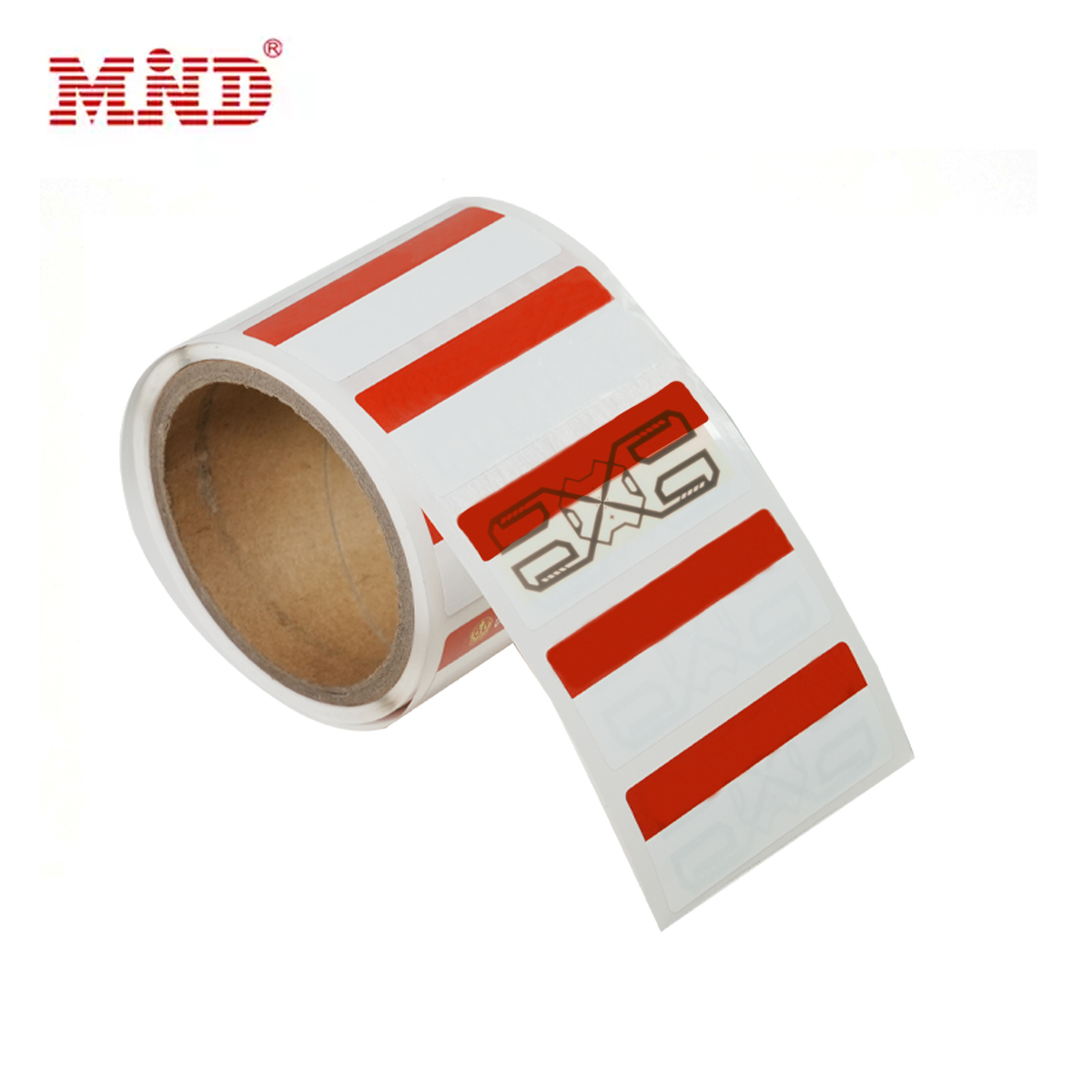

Color printing Omnidirectional UHF RFID Label 6626-Monza 4QT

Description

Product Description:

The 6626-Monza 4QT is an omnidirectional UHF RFID label designed specifically for electricity meter management. Equipped with the Monza 4QT chip and compliant with the ISO 18000-6C protocol, this label delivers exceptional read performance and reliability. Its omnidirectional antenna design ensures consistent and accurate readings from multiple angles, making it ideal for challenging installation environments. The  enhances asset tracking, data collection, and maintenance processes, ensuring efficient and accurate meter readings. This label is a robust solution for utility companies looking to improve operational efficiency and ensure reliable management of electricity meters.

Product Parameters:

Item Description
Product Color printing Omnidirectional UHF RFID  Label 6626-Monza 4QT
Chip Type Impinj/monza 4QT
EPC Memory 96-128Bits
User Memory 512Bits
TID Memory 32-96Bits
Frequency 860~960MHz
Operating Mode Passive
Protocol ISO 18000-63/Gen2v2
ESD Voltage Immunity 2KV Max. 2000V
IC Life 100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity [-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure.
ANTENNA SIZE(mm) 66*26mm
Available Dimensions(mm) 70*30mm
75*30mm
or Customized
Application Electricity Meter Management etc.
Disclaimer Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation.
