Description
Product Description:

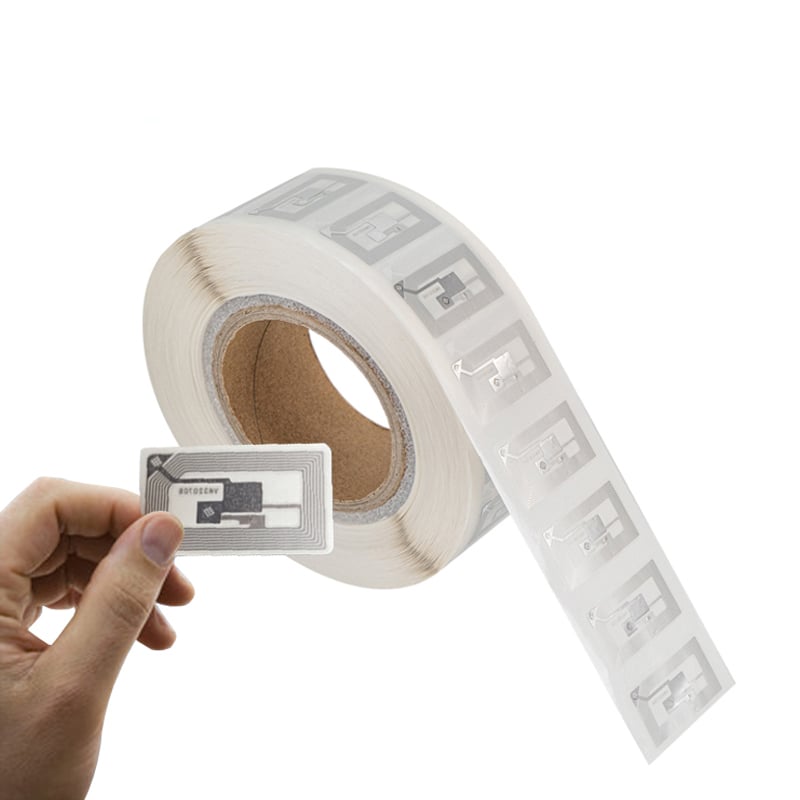

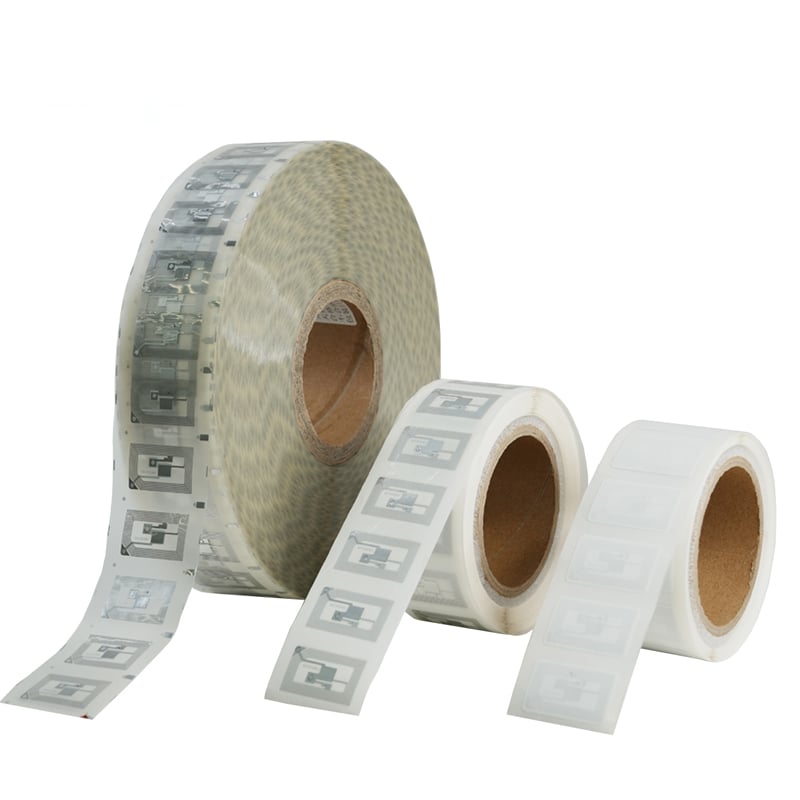

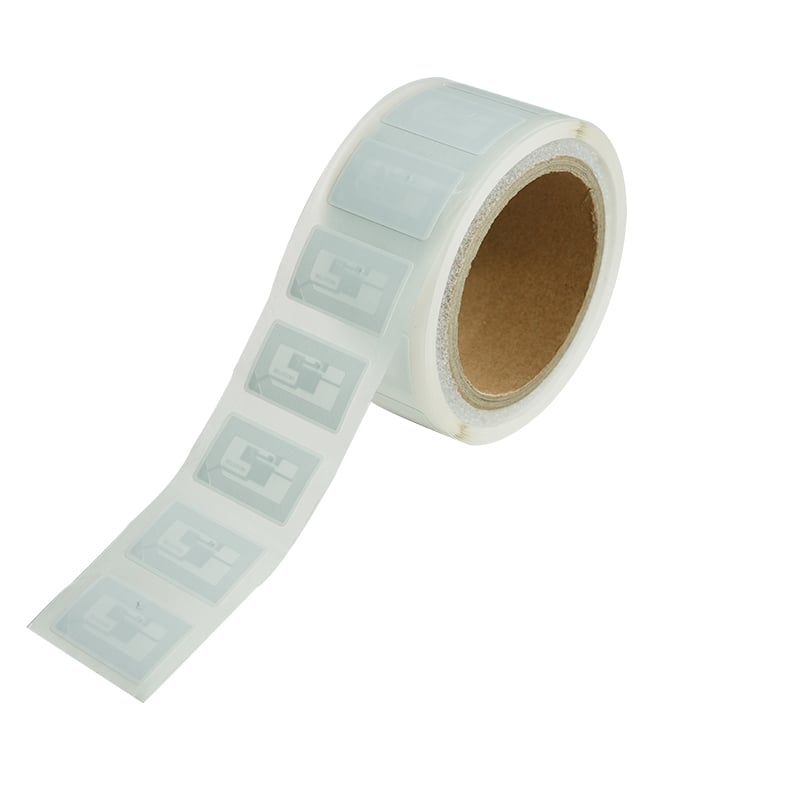

The HF RFID Wet Inlay Mi3722 is a versatile and high-performance tag designed to meet various application needs across industries. With its compliance to ISO/IEC 14443A , making it a reliable choice for a wide range of uses.
The tag is designed to enhance operational efficiency, accuracy, and security across various applications, making it an ideal choice for businesses and organizations seeking to optimize their tracking and management systems.
Product Parameters:
| Item | Description |
| Product | HF RFID Wet Inlay Mi3722 |
| Chip Type | HF chip all available |
| User Memory | 1K bits |
| Frequency | 13.56MΗz |
| Operating Mode | Passive |
| Protocol | ISO/IEC 14443A |
| ESD Voltage Immunity | 2KV |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | 76*45mm |
| Available Dimensions(mm) | 52*83mm |
| or Customized | |
| Application | asset tracking, inventory management and access control. |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
