Description
Product Description:
The Alien 9640 is a high performance general purpose RFID inlay for use in a wide variety of applications, such as supply chain management and race timing. Powered by Alien’s Higgs9 UHF RFID IC and innovative Squiggle antenna design, the 9640 delivers industry leading EPC Gen 2 performance and reliability at competitive prices. 9640 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa. Typical applications for the Squiggle include, but are not limited to, corrugated cases, pallet placards, apparel hang tags, baggage tags, shipping labels, asset management, and file folder labels.
Product Parameters:
| Item | Description | |

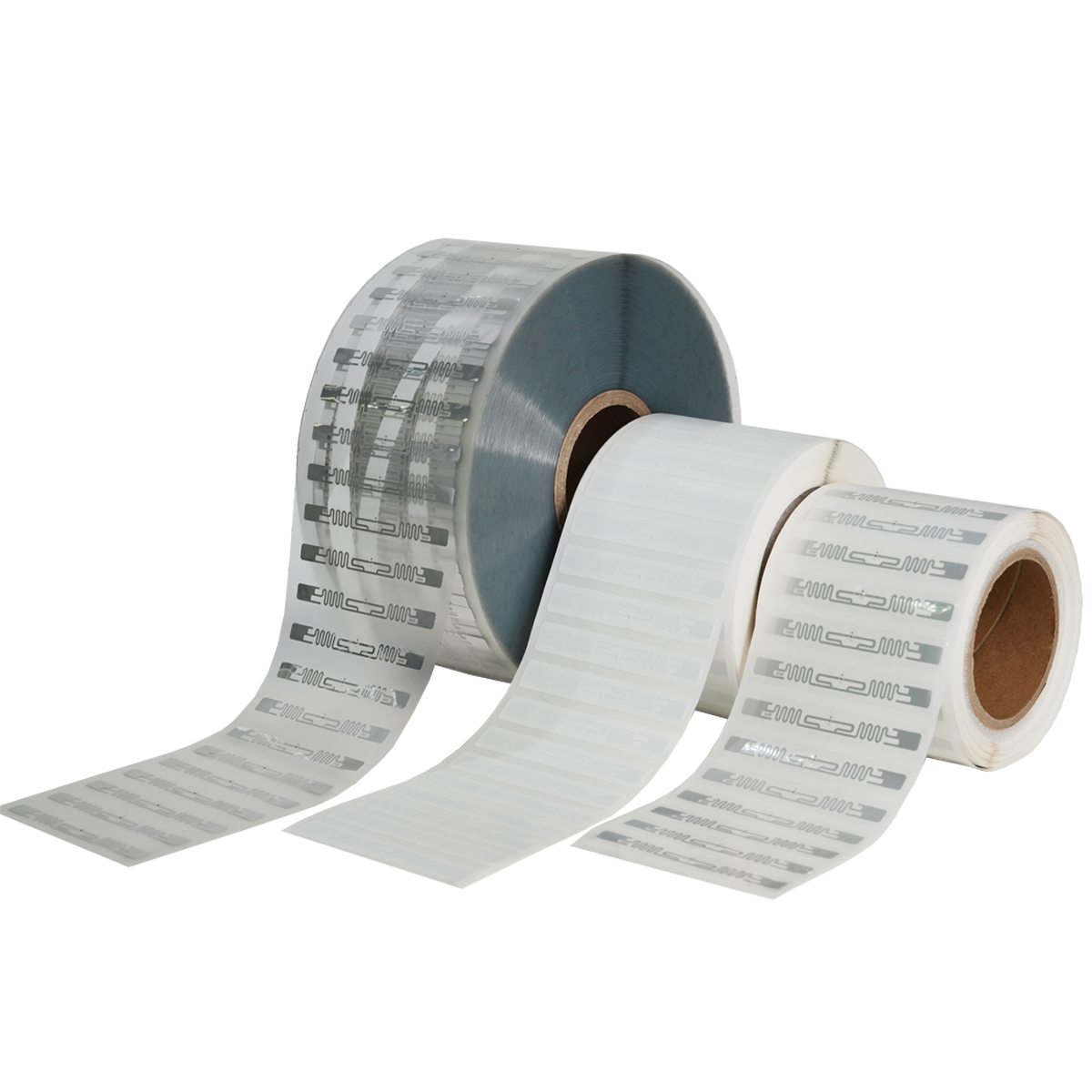

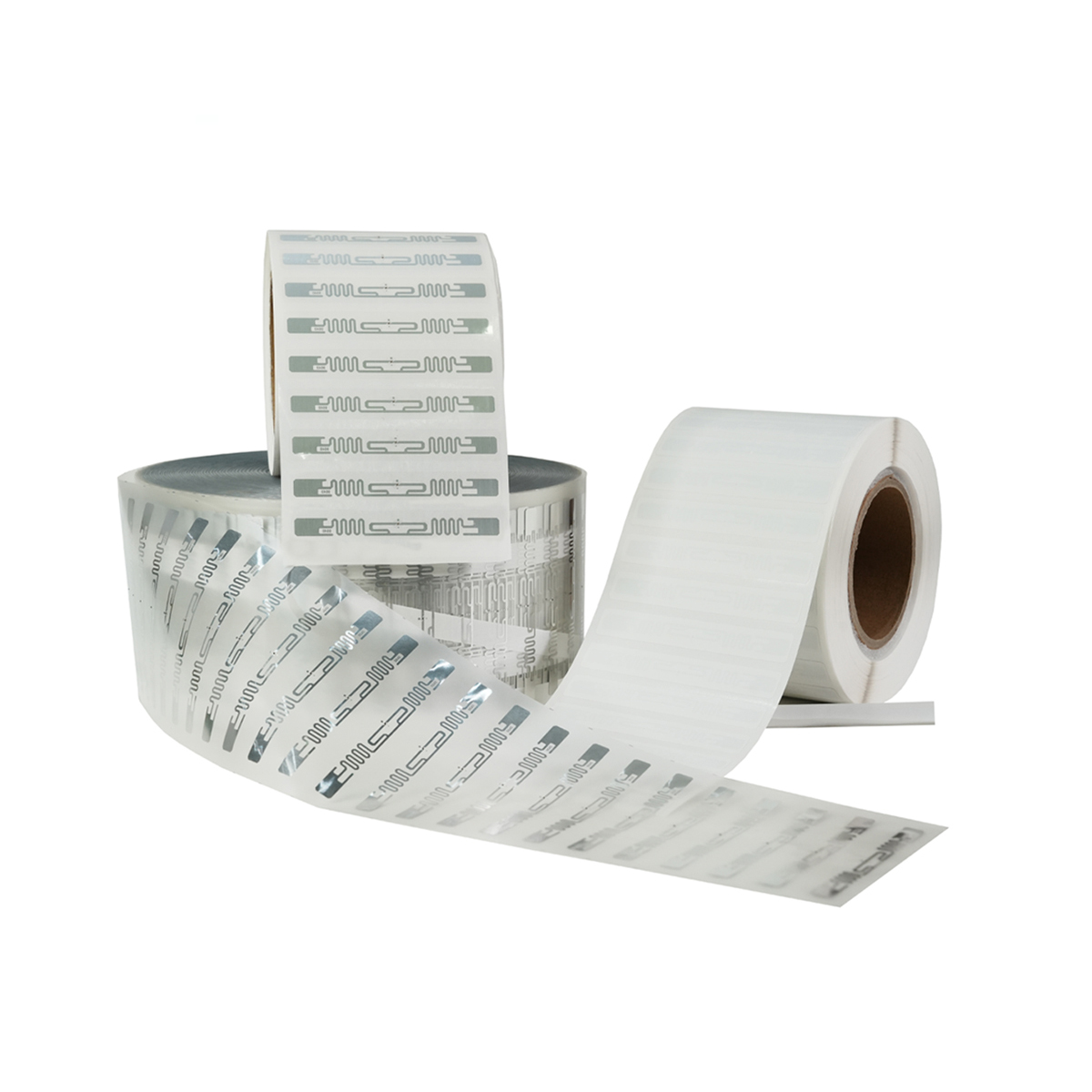

| Product | UHF RFID label 9640-Higgs9 | |
| Chip Type | Alien/Higgs9 | |
| EPC Memory | 96~496Bits | |
| User Memory | Up to 688Bits | |
| TID Memory | 48Bits | |
| Frequency | 860～960MHz | |
| Operating Mode | Passive | |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 | |
| ESD Voltage Immunity | 2KV Max. 2000V | |
| IC Life | 100,000 Programming cycles, 10 years data retention | |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% | |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. | |
| ANTENNA SIZE(mm) | 94.8*8.15mm | |
| Available Dimensions(mm) | 100*15mm | |
| 100*50mm | ||
| or Customized | ||
| Application | corrugated cases, pallet placards, apparel hang tags, baggage tags, shipping labels, asset management, and file folder labels. | |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. | |
