Product Description:
With RFID technology we are able to achieve a unit identification for each product, giving us much more precise control without the need to manually carry out controls.
By installing RFID tags on items such as glasses or contact lenses, opticians can track supply in real time, saving time and energy and improving the customer experience.
Product Parameters:
| Item | Description |

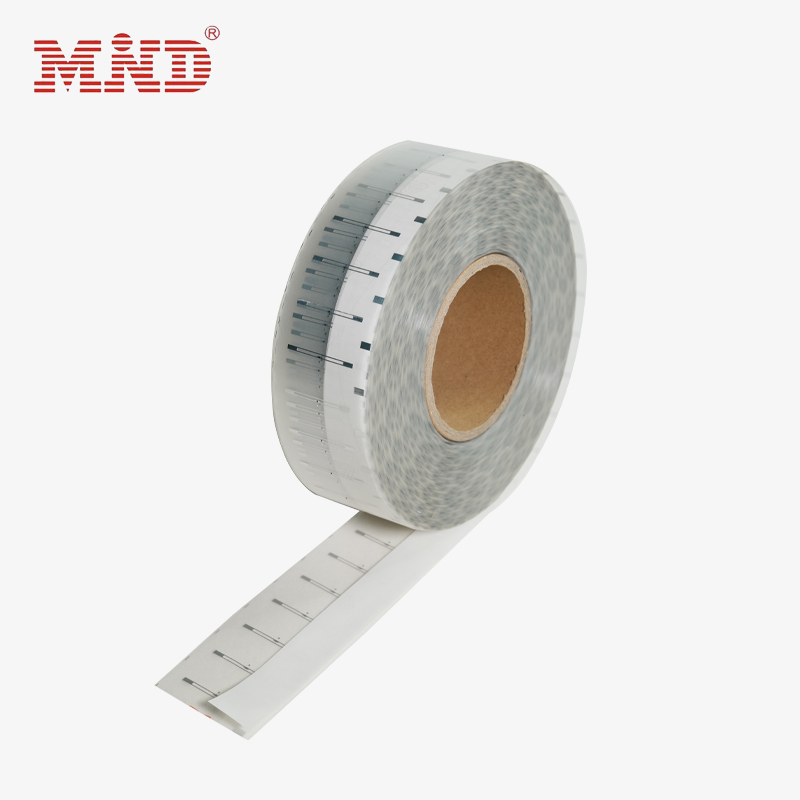

| Product | UHF RFID Dry Inlay Tag For Glasses Management Mi3502-UCODE®8 |
| Chip Type | UCODE® 8 |
| EPC Memory | 128Bits |
| User Memory | 0Bits |
| TID Memory | 48Bits |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| ESD Voltage Immunity | 2KV Max. 2000V |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | From the date of manufacture, 1 year at 23±5℃ / 50%±10%RH), un-seal the vacuum bag and avoid direct sunlight exposure. |
| ANTENNA SIZE(mm) | 35*02mm |
| Available Dimensions(mm) | 38*4mm |
| or Customized | |
| Application | Eyewear, jewelry and other retail management |
| Disclaimer | Our recommendations are based on our latest knowledge and experience, we reserve all rights for final explanation. |
